gang saw for marble
High quality of slab, High efficiency and stability, Easy operation and maintenance, Long life of machine and spare parts - details see: https://www.machineto.com/gang-saw-for-marble-10089434
| Condition:New | Type:Stone Cutting Machine | Use:Marble | Place of Origin:Fujian China (Mainland) |
| Brand Name:SHENGDA | Model Number:SKJ-80M | Voltage:380V | Power(W):110KW |
| Dimension(L*W*H):13150*5700*5500MM | Weight:55000KG | Certification:CE | Warranty:1 year |
| After-sales Service Provided:Engineers available to service machinery overseas |

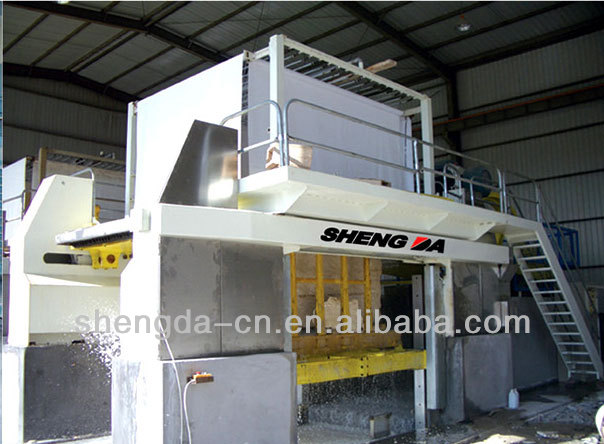

This gang saw for marble for the production of slabs at different thickness. Blocks of different size can be processed . They have a roughly parallelepiped shape having an overall worktable length of 3.3 meters, a worktable height of 2meters and a worktable width of 2meters.
Very sturdy structure in high quality steelwork. High quality sliding groups with constant lubrication. Stress resistant blade frame for keeping up the right tension of 80 blades. Electrical centralized switchboard grouping all functions and supervisions of the machine.
| SKJ-80M | ||
| Max dimension of blocks(L×W×H) | mm | 3250×2000×2000 |
| Max No. of blades | 80 | |
| Blade length | mm | 4400 |
| Cutting speed | mm/h | 0-305 |
| Blade stroke | mm | 800 |
| Stroke per minute | rpm | 85-93 |
| Main motor power | kW | 110 |
| Overall dimensions(L×W×H) | mm | 13150×5700×5500 |
| Packaging Detail:This machine need two open top container to load. We use standard seaworthy packing suitable for long distance transportation. |
| Delivery Detail:60 days from the receipt of deposit (30% of the full price) |
