1.Raw Material:Color Steel/Galvanized sheet, 2.Mitsubishi PLC System, 3.Frame:300H-beam, 4.Motor Power:4kw, 5.ISO9001:2000 - details see: https://www.machineto.com/galvanized-ridge-roofing-sheet-cap-gutter-roll-forming-machine-10086476

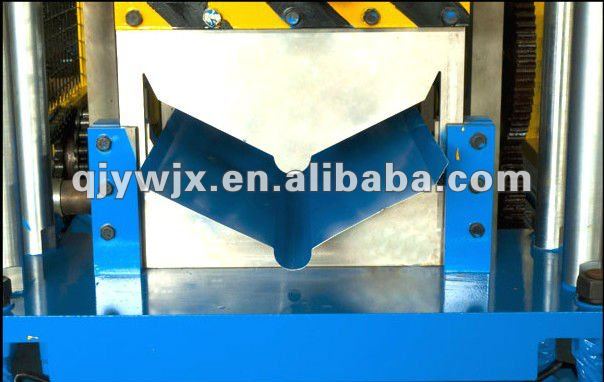

Galvanized Ridge Roofing Sheet/Cap Gutter Roll Forming Machine

1 General machine parameters

Suitable material	Color steel sheet , galvanized steel sheet,
Machine Sizes	8200mm×900mm×1450mm
Main motor power	4KW with Cycloidal reducer
Hydraulic station power	3KW
Hydraulic oil	36#
Thickness of material	0.3mm~0.7mm
Diameter of principal axis	Φ70mm
Material expand width	400mm
Electric tension	380V 3phase 50HZ or as the customer's requirements
Material of roller	High grade 45# forged steel plated with hard chrome plating
Rolling galvanization thickness	0.05mm
Processing speed	0-10m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12 mould steel with quenched treatment
Kind of drive	1 inch chain link bearing model 6210
Roller station	14Rollers

2 Automatic PLC Control System

Computer	“Mitsubishi”
Encoder	“REP”
Switch	CHNT
Transducer	"Sanjing"

3 Component

Decoiler , Main roll forming system, Cutting device, Hydraulic station, PLC control,hydraulic ,pressing system

4The production process

Decoiler--feeding material table--forming system--computer control system--hydraulic control system--cutting system--support table

5 We offer best after sale Service

6 About us

Our products are widely used in various industrial factory ,beauty spot, holiday village

building, hotel, exhibition ,easy steel building manufacturing ,and have features such

as nice appearance and durable.

Feel free to contact with us!
