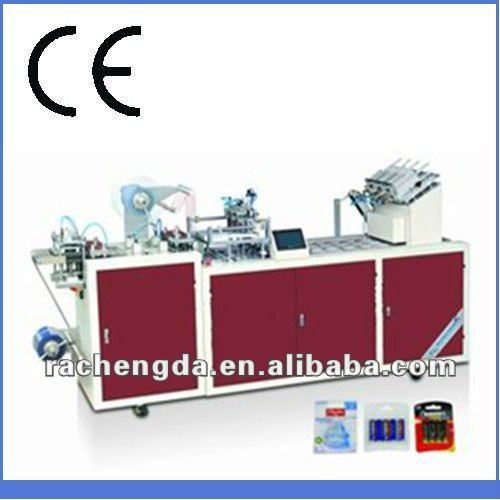

Full Auto Blister Card Packing Machine

1. CE certify, 2. PVC tray former, 3. Automatic wasting-material recycler, 4. Automatic feeder, 5. Synchronous batch printer - details see: https://www.machineto.com/full-auto-blister-card-packing-machine-10053920

Type:Blister Packaging Machine,Filling Machine	Condition:New	Application:Commodity	Automatic Grade:Automatic
Driven Type:Electric	Voltage:380	Power:8	Place of Origin:Zhejiang China (Mainland)
Brand Name:Chengda	Model Number:DZP-500S	Dimension(LWH):3600x900x1650	Weight:1800
Certification:ce	After-sales Service Provided:Engineers available to service machinery overseas	Packaging Material:PVC	Packaging Type:Other

contact supplier for Full Auto Blister Card Packing Machine

Automatic blister card packing machine

Workflow:

PVC feeding→PVC heating & positive forming→Blister towing & punching→Waste material collecting→Mechanical hand picking blisters into sealing molds→Inspecting the blister→Feeding automatically or by hand→Feeding & inspecting cardboard→2times heating under high pressur→Finished products

DZP-500S Technical Parameter

Model	500S
Packing Material	PVC sheet thickness(0.15-0.35)×320mm Cardboard 200g-700g(according to customer's requirement)
Production capacity	10-30 Punches/Min.
Pressure Air	0.5-0.8Mpa
Air consumption	≥0.3m²/min.
Power	380V 50Hz 7Kw
Molds cooling water	Running water or circle water consumption 50L/H
Overall dimension	(L×W×H) 3600×850×1500mm
Route scope	50-130mm
Max area of cardboard	500×125mm
Max forming area and depth	310×120×40mm(according to customer's requirement)
Weight	1500Kg
