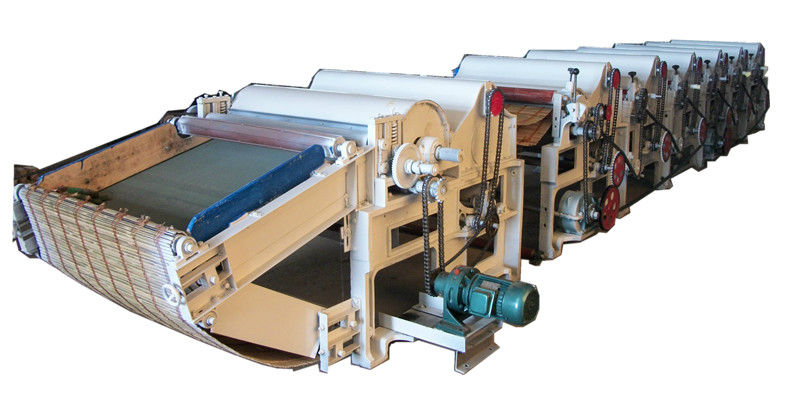

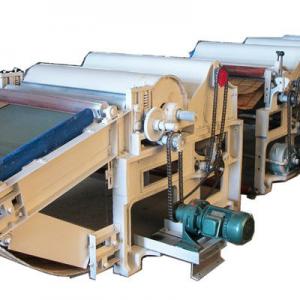

Four rollers yarn waste recycling machine

four rollersyarn waste recycling machine (QT-2504)

Recycling yarn/ textile/cotton/cloth waste with high speed and high quality

This machine makes use of the centrifugal force generated by high speed rotation of take-in roller clean out impurities from raw material, loosen fibers, and then press the fiber into big flakes. This machine can also remove the dust in the raw material. It is mainly used to clean cotton, spinning cotton waste to reuse again. It is the best way to reduce cost and make good use of resources.

Technical specification

Output 100~ 120kg /h

Diameter of take-in roller 250 mm

Rotating speed of take-in roller first 1900round min; Second 2000r/min

Dust basket diameter 500mm mesh 2mm

Motor Y132S-4 5.5KW three sets

Take-in wire 1.09x75º×7 teeth/25.4mm

Outside dimension (LXWXH, mm) 3950mm X 1720mm X 1160mm

Weight 2200kg
