Product Description:

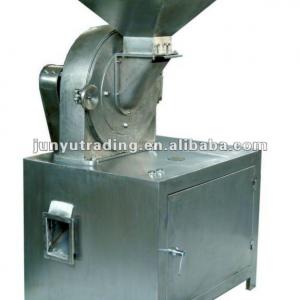

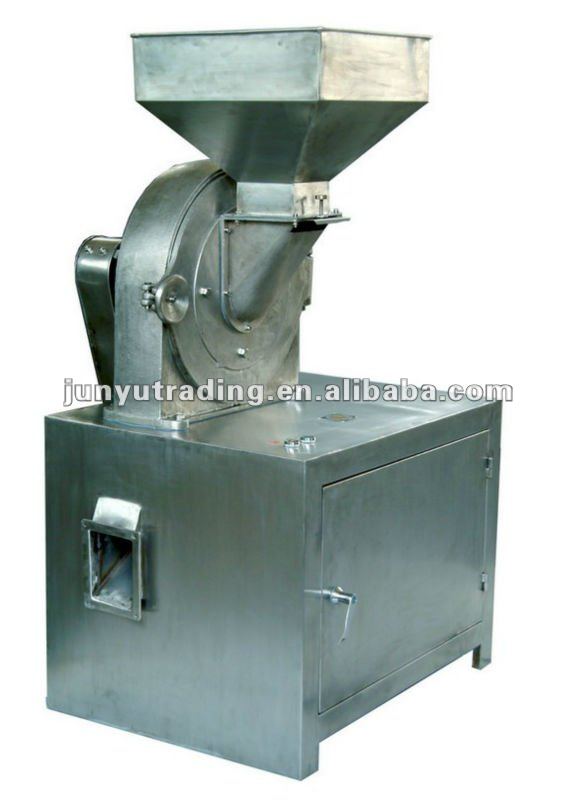

Universal Crusher

1. Main Application:
This universal crusher is a pulverizer mill used to crush material into powder. Now it is used widely in pharmaceutical, chemical and food field etc.

2. Working Principle:
The material is fed into the crushing chamber through a hopper, By means of relative motion between movable and fixed plates, the material is crushed by through impact and friction of the teeth plate, and then flows to the exit automatically under centrifugal force and will be collected through a cloth bag, the dust filtered and collected by dust collector. Change the sieve to control the output size. There's no dust flying during production, which avoids pollution.

Universal crusher is designed according to GMP standard and wholly made of stainless steel. With features of simplicity, output high, easy to wash, it becomes the universal equipment at present.

Universal crusher with dust collector(optional)
Model	JY-20B	JY-30B	JY-40B	JY-60B
Capacity	60-150kg/h	100-300kg/h	150-600kg/h	200-1200kg/h
Spindle speed	6000r/min	4500r/min	3800r/min	3400r/min
Feeding size	«6mm	«10mm	«10mm	«12mm
Output size	20-150mesh	20-150mesh	20-150mesh	20-150mesh
Crushing Motor	4kw	5.5kw	7.5kw	15kw
Dust collector motor	1.1 kw	1.1kw	1.1kw	1.1kw
Overall dimension(L×W×H):	1280*600*1660mm	1280*600*1660mm	1450*700*1800mm	1950*850*2100mm
Weight	280kg	340kg	450kg	600kg
