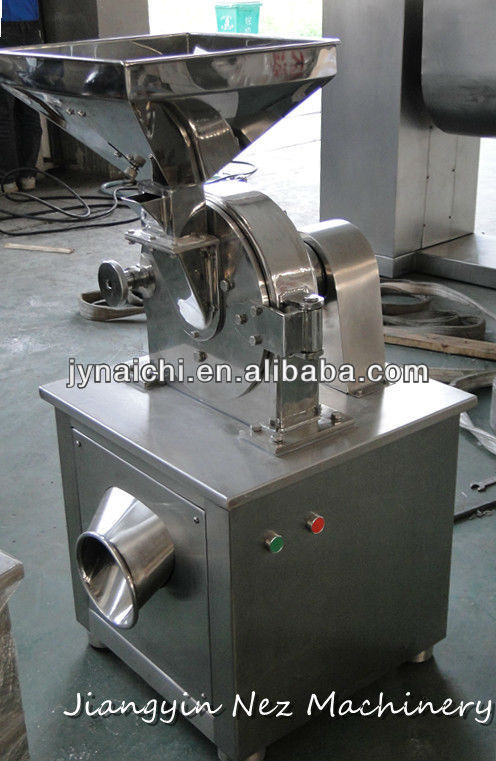

WF Series Universal Crusher

Working Method

The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The size of granules can be achieved by changing of the screen. The machine has the features of easy structure, solid, stable running and good efficiency. The crushed material is discharged directly from the grinding chamber of the main frame. In addition, the whole machine is made of stainless steel, with smooth inside walls to avoid powder accumulation on the inside walls. Those pharmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving "GMP" standard.

Technical Data

Model	18	20	30	40	60	80	100
Capacity(kg/h)	10-50	60-150	100-400	160-1000	500-1200	1000-5000	2000-8000
Speed of principal axis(r/min)	6000	4500	3800	3400	2800	2000	1500
Size of input granules(mm)	<6	<6	<6	<10	<12	<12	<12
Fineness of products(mesh)	20-120	12-120	20-120	12-120	20-120	20-120	20-120
Power(KW)	2.2	4	5.5	11	18.5	37	55
Weight(kg)	100	280	350	550	680	1500	2500
Overall size (mm)	550*400*850	550*600*1250	600*700*1450	800*900*1550	900*900*1880	1100*950*1960	1350*1000*2100
