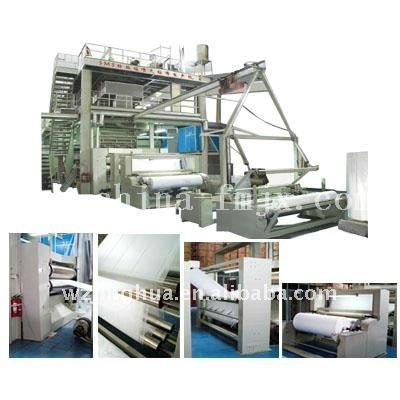

FM nonwoven production line

1.nonwoven production line, 2.The Non-woven machine is used for producing the nonwoven fabrics automatically., 3.fabric for bag. - details see: https://www.machineto.com/fm-nonwoven-production-line-10275419

Condition:New	Automatic Grade:Automatic	Place of Origin:Zhejiang China (Mainland)	Brand Name:FENGMING,fengming
Model Number:FM SERIES,FM-1600/2400/3200	Voltage:380V	Certification:ISO9001, CE	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas

nonwoven production line

Introduction:

Spinning die head of the non-woven machine adopts design optimization of flow models of coat-hanger type,equality distribution of melt,balance pressure,
Non-broken or combine fibreno holesno blind angle,and fastly
Color transition.Rolling mill adopts DC motor universal joint transfer,roller adopts technology of Ultra Laser Drilling to ensure the same of the temperature,no Hair-in-filling. The equipment adopts cutting on line,automatic low winding technology,in order to serve
Resource,and improve the production efficiency.

Main Technical Variables:

Model	FM-1600	FM-2400	FM-3200
Diameter of screw	Φ105-Φ130mm	Φ105-Φ150mm	Φ105-Φ170mm
L/D	30:1
Capability	1500T/Y	2200T/Y	3000T/Y
Max.film width (mm)	1600mm	2400mm	3200mm
Weight range(g/)	10-250g/
Fiber number	2D-4D
Total power	280kw	450kw	600kw
