Bottle flame treatment machine used for the surface pretreatment of PE ,PP,hardware, plastic products. - details see: https://www.machineto.com/flame-treatment-machine-10335878

LCF-1 Bottle Flame treatment machine

1.Mainly used for the surface pretreatment of PE and PP plastic products.

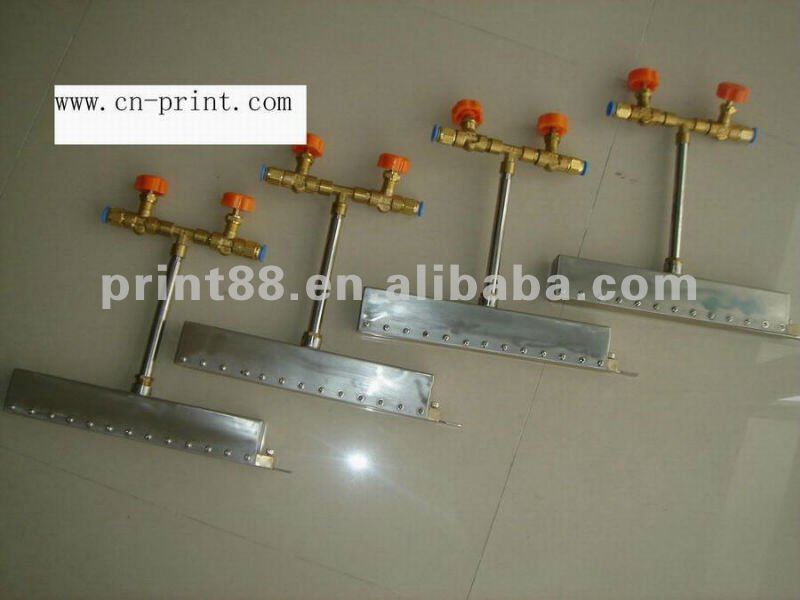

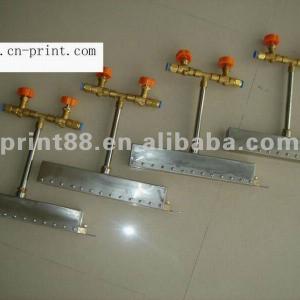

2.With the design of two flame nozzles in order to make the treatment more equal.
3.According to the size of product that is to be printed, replace the taper support to meet the different requirements of workpiece.

Specifications
1. Frame width:250mm
2. Burning Gas:LPG gas
3. Power: AC110V/220V/50Hz
4. Conveyor speed:0~20m/min
5. Outline dimension:2000X450X1250mm
6. Conveyor size:2000X340mm
7. Combustion-supporting gas:Compressed air 8kg/cm2

8. Package dimension:2330×700×1200mm
9.Diameter range of the product treated:10~24mm
10.Height range of the product treated:20~300mm
11..Speed of conveyor:1800~3000psc/hr
12.Machine Weight:155KG

Advantages
1. Mainly used for the surface pretreatment of PE and PP plastic products.
2. Micro motor imported from Japan, stepless speed timing mode is adequate for different workpiece requirement.
3. The machine is two sides equipped with baffle-boards to improve the heat efficiency.
4. Advanced gushing nozzle is design generates a good combustion result, it is a product that saves energy.
5. According to the size of your product that is to be printed, replace the taper support to meet the different requirement of workpiece

Price Terms FOB or L/C Payment Terms T/T or L/C Packing Wooden case Lead Time 5 days after confirm order SKU 5 set Standards Certificate CE
