fitness roller mill, 1 stable operation to save energy and maintenance cost, 2 cooling and heating device can be available as cu - details see: https://www.machineto.com/fitness-roller-mill-10313996

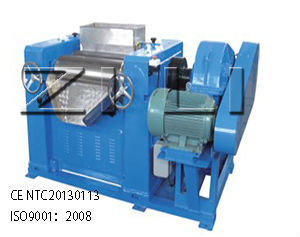

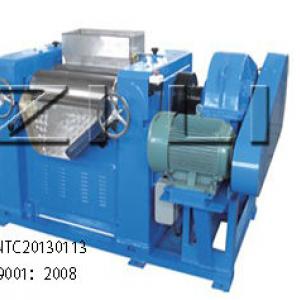

fitness roller mill

SPECIFICATION:

1, This machine is applied for high viscosity and high hardness material, which is between S type and SQ TYPE mill. Especially for silicon rubber, pencil core, reflex blue paste and so on.

2, The motor power and reducer type can be specified based on material characteristica, stable operation to save ebergy and maintenance cost.

3, The cooling and heating device can be available as customer request!

Area: Automatically control pressure in milling cavity ,choose best milling result.
The mechanical sealing and bearing stop is open connected,which resolve the material impact on coupler under high viscosity,so as to make mill work more safety and securely.

Advantage

- Higher output rates and greater fineness through optimization of overall roller configuration.

- Centrifugally compound cast rollers, with hard surface of great depth.

- Easy and steble operation, more precise and record the producing data.

- Dynamic hydraulic system with optimum setting facilities.

Features

- The welding machine frame structure makes the more steadily

- Very hard and cold molded alloy roller cylinder was used

- The cylinders, gearing wheel and belt pulley are dynamic balance designed, so the machine operates with the lowest noise

After Sales Service:
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.

Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.

Package:
Standard wooden Case Packing

Model	SZ260	SZ405
roller working length mm	675	810
roller dia mm	260	405
slow roller	13	12.2
middle roller	39	37.6
fast roller	117	116
motor power kw	11-18.5	15-55
reducer type	JZQ400-500	JZQ500-650
weight KG	3000	6500
speed ratio	1:3:9	1:3:9
overall size mm	2500x1800x1040	2700x2000x1300
