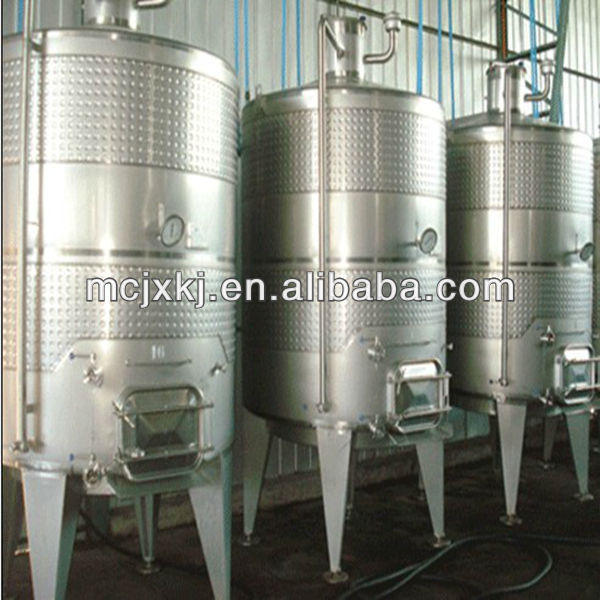

Ethanol Storage Tank

1.stainless steel SUS316L or SUS304, 2.sanitary Valve, 3.corrosion resisting, 4.finishing polish - details see: https://www.machineto.com/ethanol-storage-tank-10035119

Place of Origin:China (Mainland)

Brand Name:MINGCHEN

Model Number:MC-EST-1

contact supplier for Ethanol Storage Tank

The Ethanol Storage Tank series trictly tally with the 31st and 32nd clauses of ' Medicine Production Quality Management Normal cGMP General Principles' and is designed, manufactured and accepted according to the requirements of GB150-98' Steel Pressure Vessel' and JB/T4735-97 ' Steel Welding Normal Vessel' .

1. Heat preservation material of the vessel adopts high-temperature resistant and antiaging polyurethane blister or pearl cotton.

2. Joints adopt international general ISO package chuck, inner container adopts imported stainless steel SUS316L or SUS304, internal surface is polished, and external surface polishing, mirror polish, sand blasting or cold-rolled nature-color surface polishing. All is in accordance with cGMP medical standards.

3. Orifice is set with level gauge (static-pressure type, capacitance type, non-contact type, ultra-sonic type and glass tube type), air respirator, thermometer (digital display type or dial plate type), CIP cleaning mouth, SIP sterilizing mouth, liquid entrance-exit gate and sanitary inlet.

4. Volume Specification: 100L-30000L or to be designed and manufac-tured at customers' actual request.
