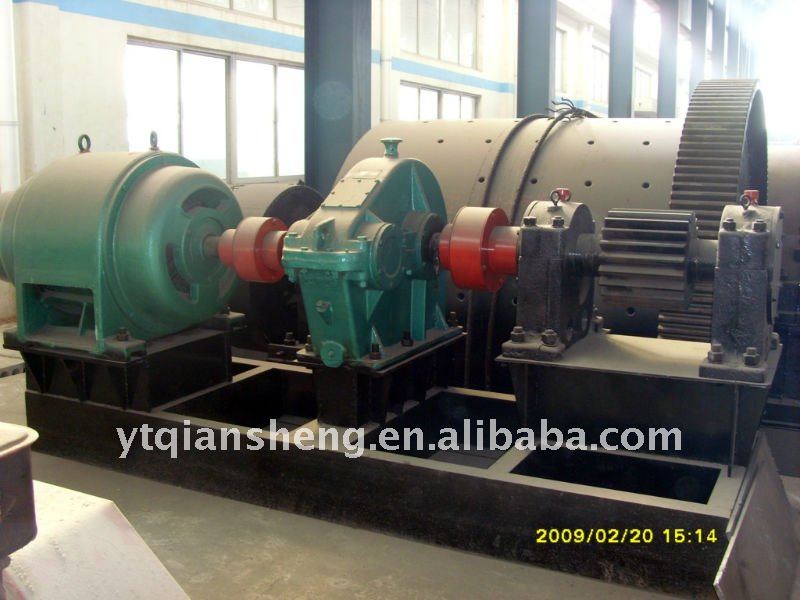

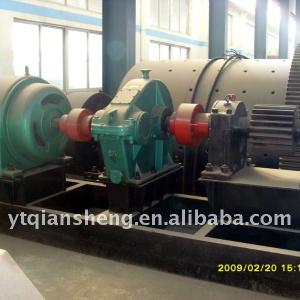

erengy saving used in mine bearing ball mill
| Condition:New | Type:Ball Mill | Motor Type:AC Motor | Capacity(t/h):2.8~40 |
| Place of Origin:Shandong China (Mainland) | Brand Name:Qiansheng | Model Number:MQG | Warranty:ONE YEAR |
| After-sales Service Provided:Overseas service center available | Application:Ore | Color:black | Capacity:2.8-17 t/h |
ball mill
Features
Large diameter double row self-aligning roller bearings are adopted for main bearing instead of the original sliding bearing, reducing the friction and energy consumption, and making the mill start up easily.
It maintains the end cover strcture of common mill, with large-caliber feeding and discharging opening, which realizes large processing capacity.
Notes for ordering
While making selection, the customer should specify the rotating direction and discharging mode of the ball mill.
Technical parameter of MQG series rolling bearing ball mil
Model | Standards | Revolution | Weight | Size of | Output(t/h) | Cooperate Motor | Dimension | Weight(kg | Remarks (t/d) | ||||
| Model | Power (kw) | ||||||||||||
| MQG1524 | φ1500×2400 | 30.7 | 7.0 | 25 | 2.8~6.5 | YR280S-8 | 55 | 6830×2930×2060 | 15430 | 70-100 | |||
| MQG1530 | φ1500×3000 | 30.7 | 9.0 | 25 | 3.5~8.0 | JR117-8 | 80 | 7430×2930×2060 | 16843 | 100-150 | |||
| MQG1533 | φ1500×3300 | 30.7 | 10.0 | 25 | 4.0~9.0 | JR125-8 | 95 | 7730×2930×2060 | 17849 | 110-170 | |||
| MQG1536 | φ1500×3600 | 30.7 | 11.0 | 25 | 4.5~10.0 | JR125-8 | 95 | 8030×2930×2060 | 18649 | 120-200 | |||
| MQG1542 | φ1500×4200 | 30.7 | 12.5 | 25 | 5.0~11.0 | JR126-8 | 110 | 8630×2930×2060 | 19330 | 150-200 | |||
| MQG1545 | φ1500×4500 | 30.7 | 13.5 | 25 | 5.5~13.5 | JR126-8 | 110 | 8930×2930×2060 | 20000 | 180-250 | |||
| MQG1557 | φ1500×5700 | 30.7 | 17.0 | 25 | 7.0~15.5 | JR127-8 | 130 | 10130×2930×2060 | 23597 | 230-300 | |||
| MQG1563 | φ1500×6300 | 30.7 | 19.0 | 25 | 8.0~17.0 | JR128-8 | 155 | 10730×2930×2060 | 24390 | 250-350 | |||
| Packaging Detail:standard container |
| Delivery Detail:25 days |
