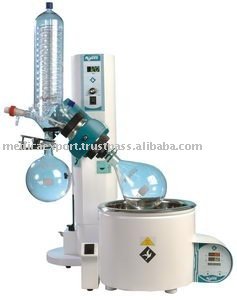

EQUITRON Roteva - Rotary Vacuum Evaporator

Ideal for routine rotary vacuum evaporation at Universities, colleges, schools, small to mid size companies & as standby unit. - details see: https://www.machineto.com/equitron-roteva-rotary-vacuum-evaporator-10294508

Type:Rotary Vacuum Evaporator

Place of Origin:Maharashtra India

Brand Name:EQUITRON - Roteva

contact supplier for EQUITRON Roteva - Rotary Vacuum Evaporator

Applications:

EQUITRON Roteva - Rotary vacuum evaporators are efficient laboratory distillation units for applications like standard solvent distillations, concentration of reaction mass or solutions, separation of solvents from extracts, crystallization and powder drying. Along with carefully designed accessories it becomes a work horse in any laboratory.

Roteva's low profile design gives confidence and ease of operation.
Roteva's electronics are advanced and user friendly with better control with feedback.
Roteva's fabrication encompasses hydraulic pressed items, to deliver a compact footprint in all stainless steel and non corrosive material.
Glass blowing technology at its best with flawless & interchangeability of parts.
Smooth flowing design enables a compact footprint and a welcome addition to the laboratory.

Item	Specification	Item	Specification
Heating bath dimensions	Ø 230 x 130 mm	Power supply	230 V, AC, 50 Hz
Volume of heating bath	4 lit. Approx.	Rotation speed	30 to 270 rpm
Bath heater capacity	1200 Watts	Rotation speed display	Yes
Heating bath controller	PID with display for set & actual temp.	Lift	Motorised
Bath temperature range	Ambient + 5 to 180°c	Manual lift (When power fails)	Yes
Temperature accuracy	± 2°C	Height adjustment	170 mm Approx.
Independent safety cutout	@ 190 °C	Flask ejector	Yes
Heating bath material	SS 304	Condenser support	Yes
Min / Max flask size	50 ml / 3000 ml	Foot print	220 cm²
Cond. cooling area: D, V, VR	1200 cm²	Glass sets available	D, V, C, E, VR, ER
Cond. cooling area: C	580 cm² approx.	Threaded connectors for utilities	Yes
Cond. cooling area E, ER	2000 cm² approx.	Feed stopcock & tube made of	PTFE
Environmental conditions (Temp.)	10 to 40°C	Environmental Conditions (% RH)	Max 80% NC
NOTE: All the Evaporators are supplied with one litre evaporating and receiving flasks as standard.

ORDERING INFORMATION ROTEVA:

8763.RD0.000 --- Roteva-Digital with Diagonal Glass Set (D)

8763.RV0.000 --- Roteva-Digital with Vertical Glass Set (V)

8763.RC0.000 --- Roteva-Digital with Cold Trap Glass Set (C)

8763.RE0.000 --- Roteva-Digital with Extra Cooling Glass Set (E)

8763.RVR.000 --- Roteva-Digital with Vertical with Reflux Set (VR)

8763.RER.000 --- Roteva-Digital with Extra Cooling with Reflux Set (ER)

There are many optional accessories, some of which are listed below:

Vapour Temperature Indicator
Digital Vapour Temperature Indicator with Sensor
Digital Vacuum Controller
Manual Chiller
Refrigerated Chiller
EQUIVAC PTFE diaphragm variable drive vacuum pump [KNF (Germany) inside]
EQUIVAC PTFE diaphragm vacuum pump [KNF (Germany) inside], 020 mbar]
Float Balls Pack (for Water Bath)
Flask Stand for RB Flask ø160mm
Vacuum Trap (Cold Trap type) with SS support rod, clamp & base
Vacuum Trap (Cold Trap type) with SS support rod & clamp for PTFE diaphragm models as per requirement.
Spare Flasks / Glassware [Evaporating B-29, Receiving Flask S-35, Evaporating B-24] -- 50ml / 100 ml / 250ml / 500 ml / 1000 ml / 2000 ml / 3000 ml
