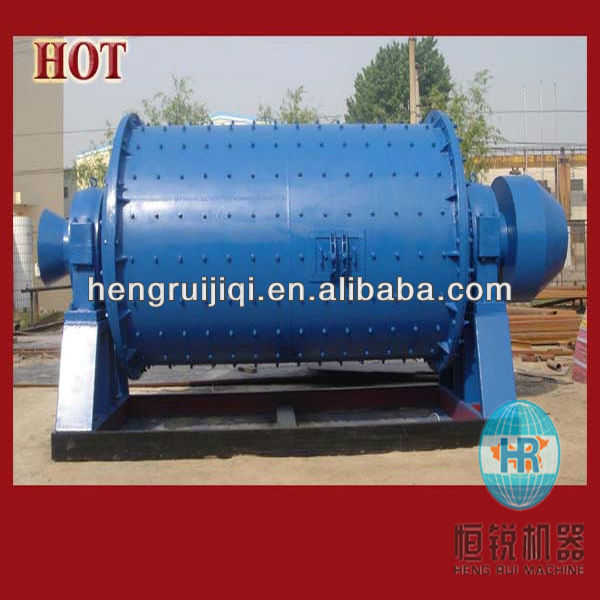

Energy Saving Ball Mill

Pottery ball mill:, *ISO9001: 2000, *stable performance, * energy-saving machine, *grind cement, quartz, bauxite, iron - details see: https://www.machineto.com/energy-saving-ball-mill-10314219
Condition:NewType:Ball MillMotor Type:DC MotorPower(W):380KW
Capacity(t/h):0.65-50Place of Origin:Henan China (Mainland)Brand Name:RHModel Number:2400*4500 2700*4500
Weight:94Certification:ISO9001-2000Warranty:3 Years,one year excluding the spare partsAfter-sales Service Provided:Overseas third-party support available
color:as your requirementspare parts:supplyweight (t):12.5motor power(KW):45
feeder opening size:≤25installation:under the direction of our engineershippment:by seaoperation training:for free
application:cement, silicate, new-type buildin...
Energy Saving Ball Mill
contact supplier for Energy Saving Ball Mill


1.Structure of pottery ball mill:

The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The rotation big gearwheel is made by cast hobbling processing and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

2.Operating Principle of pottery ball mill:

The ball millis a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of ceramic ball in the chamber. The centrifugal force caused by rotation of barrel brings the ceramic ball to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

3.Main technical parameter of pottery ball mill:

Model
Cylinder speed(r/min)
Ball capacity
(t)
Material-in size(mm)
Material-out size(mm)
Capacity(t/h)
Motor power(kw)
Weight(T)
Ø900×1800
38
1.5
20
0.075-0.89
0.65-2
18.5
3.6
Ø900×3000
38
2.7
20
0.075-0.89
1.1-3.5
22
4.6
Ø1200×2400
32
3.8
25
0.075-0.6
1.5-4.8
45
12.5
Ø1200×3000
32
5
25
0.074-0.4
1.6-5
45
12.8
Ø1200×4500
32
7
25
0.074-0.4
1.6.5.8
55
13.8
Ø1500×3000
27
8
25
0.074-0.4
2-5
90
17
Ø1500×4500
27
14
25
0.074-0.4
3-6
110
21
Ø1500×5700
27
15
25
0.074-0.4
3.5-8
132
24.7
Ø1830×3000
24
11
25
0.074-0.4
4-10
180
28
Ø1830×6400
24
23
25
0.074-0.4
6.5-15
210
34
Ø1830×7000
24
25
25
0.074-0.4
7.5-17
245
36
Ø2200×5500
21
30
25
0.074-0.4
10-22
370
48.5
Ø2200×6500
21
31
25
0.074-0.4
14-26
380
52.8
Ø2200×7500
21
33
25
0.074-0.4
16-29
380
56
Ø2400×7000
21
34.5
25
0.074-0.4
18-32
400
62.8
Ø2400×8000
20.4
36
25
0.06-0.08
18-36
410
81.2
Ø2700×3600
18
37
25
0.08
50
410
77.5

Energy Saving Ball Mill
Packaging Detail:expert standard
Delivery Detail:30 days after confirm the order
