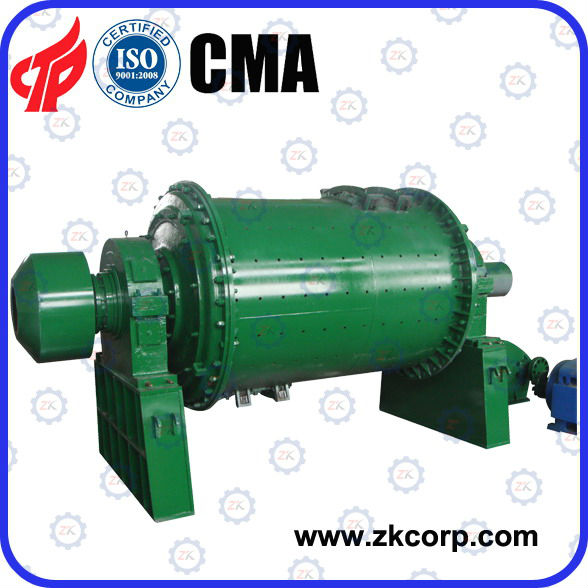

Energy-saving and high quality gold ore ball mill

1 Competitive price, 2 Good quality, 3 Mature experience and excellent technical support - details see: https://www.machineto.com/energy-saving-and-high-quality-gold-ore-ball-mill-10313952

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):380kw
Capacity(t/h):0.8~65TPH	Place of Origin:Henan China (Mainland)	Brand Name:ZK	Model Number:MQG
Dimension(LWH):see drawing	Weight:NA	Certification:ISO9001	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas	Feeding Size:25mm	Output Size:0.074-0.4mm	speed:21.4r/min
installation:under our engineer's supervising	after sale service:for the whole using life	Spare parts:whole life

Ball mill structure

Ball mill includes feeding part, rotary part, discharge part, drive system (gearbox, motor, etc) support device, lubricant system.

( ball mill in work shop)

( Ball mill in workshop)

Working Principle

Ball mill is a horizontal cylindrical rotary device, outer gear, the material goes through feeding part into first compartment, there are step linings or corrugated linings, as well as grinding media(balls) with different sizes. The centrifugal force caused by cylinder rotation bring the balls to certain height and fall down to smash and grind material. After coarse grinding in first compartment, the fine material pass through diaphragm to second compartment, there are flat linings and grinding media, which provide further grinding. Finished material discharged through grate.

(Ball mill delivery)

Ball mill delivery

Application
Ball mill is widely used in mining, cement,mineral,refractory material industry etc. it can grind/mill the material like limestone,slag,cement,mineral ore, coal etc to fine size

( Ball mill installation onsite for a gold project)

( Ball mill installation onsite)

Why choose us

We have complete whole-set processing equipments and advanced inspection method that make sure our ball mill in good quality.

We have experienced technical team and provide you excellent service before during and after sales.

We are honest and reliable.
