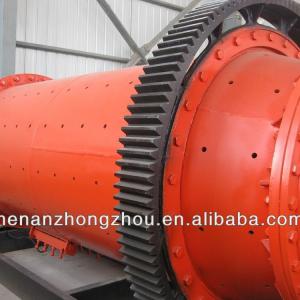

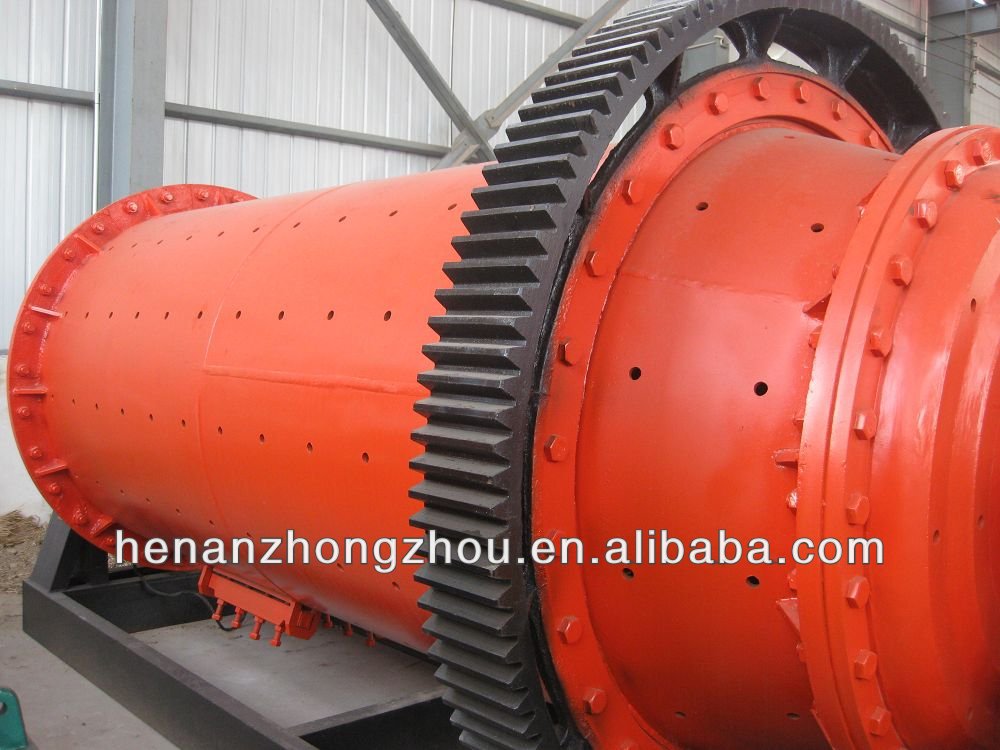

Energy-efficient Ball Mill for cement,chemical industry,Building materials

High-efficiency, More than 20 years of experience, Excellent product and perfect after-sale service, Easy to operate - details see: https://www.machineto.com/energy-efficient-ball-mill-for-cement-chemical-industry-building-materials-10313908

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):15000
Capacity(t/h):0.5-1.3	Place of Origin:Henan China (Mainland)	Brand Name:ZhongZhou	Model Number:GZMY-900*2100
Weight:3.9t	Certification:ISO9001	Warranty:for one year	Application:buliding materails,cement,chemical industry,mineral processing
Waranty:for one year	Colour:red or as your require	Manufacture:all manufactured by ourselves	Max feeding size(mm):15
Price:factory price,low	After-sale service:timely

Energy-efficient Ball Mill for cement,chemical industry,Building materials

contact supplier for Energy-efficient Ball Mill for cement,chemical industry,Building materials

Energy-efficient Ball mill Brief Instruction:

Energy-efficient Ball millis a grinding machine which the crushed material need for further smash. it is widely used in cement, silicate product, new type building material, fireproofing, fertilizer, black and non-ferrous metal mineral separation and glass-ceramic and so on production industry, the wet ball mill uses dry or wet grinding type to different ores or other materials.

Energy-efficient Ball mill Structure:

Energy-efficient Ball mill is consisting of feeding department, discharge department, rotation department, transmission department (reduction box, small gear, electromotor, electronic control) and so on main part. Quill shaft adopts steel-casting, the lining can replace easily, rotary big gear adopts steel-casting the cylinder body has wear-resisting lining board, which has good abrasive resistance. The machine operation smoothly and has a reliable work.

Energy-efficient Ball mill Working Principle:

Energy-efficient Bmillis a horizontal cylinder rotating device. The materials through feeding department get into first storehouse of the mill, where has different types of steel ball in it, the centrifugal force caused by machine body rotating bring the steel ball to a certain high then fell down, which play a strike and abrasive role to the materials. The materials then though single-layer diaphragms into the second storehouse after kibbling, this room has flat foils and steel ball for further grinding. Powder discharge from the unloading lift, then the grinding work has been done.

Our Service:

We have the good service to our customers, if they can't install the machines, we can send our technician come to your location, and install for you. We make every endeavor to satisfy our customers.

Energy-efficient Ball mill Specification and Technical Parameter:

Type	Feeding granularity (mm)	Finished granularity (mm)	Capacity (t/h)	Power (kw)	Weight (t)
GZMY-900*2100	≤15	0.075-0.083	0.5-1.3	15	3.9
GZMY-1200*2800	≤25	0.075-0.6	1.5-3.7	30	9.5
GZMY-1500*3500	≤25	0.075-0.4	3.3-8.2	75	15.6
GZMY-1830*3770	≤25	0.074-0.4	4.5-20	130	28
GZMY-2100*3000	≤25	0.074-0.4	6.4-30	155	38
GZMY-2100*3600	≤25	0.074-0.4	7.6-35	185-210	41.8
GZMY-2400*9600	≤25	0.074-0.4	10-50	280	44
