1,High quality, reasonable price, 2, High efficiency and low waste, 3, Easy controlled by workers. - details see: https://www.machineto.com/eminent-painting-machine-spray-fme40-painting-machine-spray-10343699

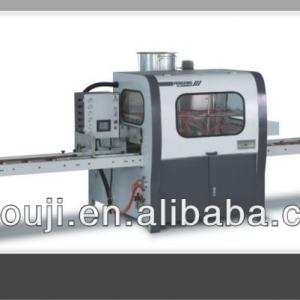

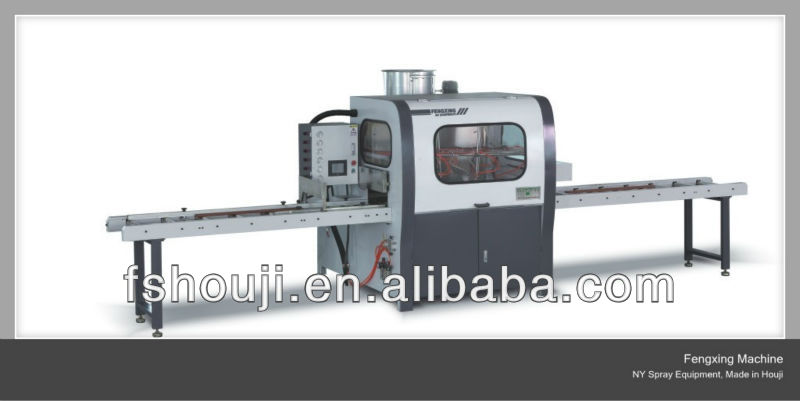

Lines or door frames dedicated automatic numerical control sprayer
Applicable for the continuous surface spraying of strip deformed work pieces such as door frames, wood lines, skirting lines, and photo frames etc.

Features
1. Spray gun on and off are under machine PLC precise control, to save paint;
2. Japanese IWATA or Tewei automatic spray guns are optional for users, with spraying amount and angles pre-adjustable and
each gun under individual control;
3. Waste gas purifying system is provided for the machine, to effectively treat the waste gas generated by the spraying
operation before discharge, to maximum prevent environment pollution;
4. The oil supply system includes a set of large-volume diaphragm pump and a stabilizer in order to provide stable paint flow,
ensure stable spraying and easy paint change;
5. Feeding speed is under frequency conversion control, to adapt for varied painting requirements.

Machine model FME40 Processing width 10-400MM Processing thickness 5-80MM Minimum length 420MM Feeding length 5-15m/min Feeding power 0.75KW Fan power 1.1KW Water pump power -- Working spray gun 6 Spray gun caliber 0.8-1.4MM Paint type PU,AC Coating thickness 0.12-0.25MM Paint dosage 40-120g/M2 Air pressure 0.6Mpa Air flow 2400L/min Power applied 380V 50HZ Overall sizes 3.5x2x1.8M Machine weight 1.5T
