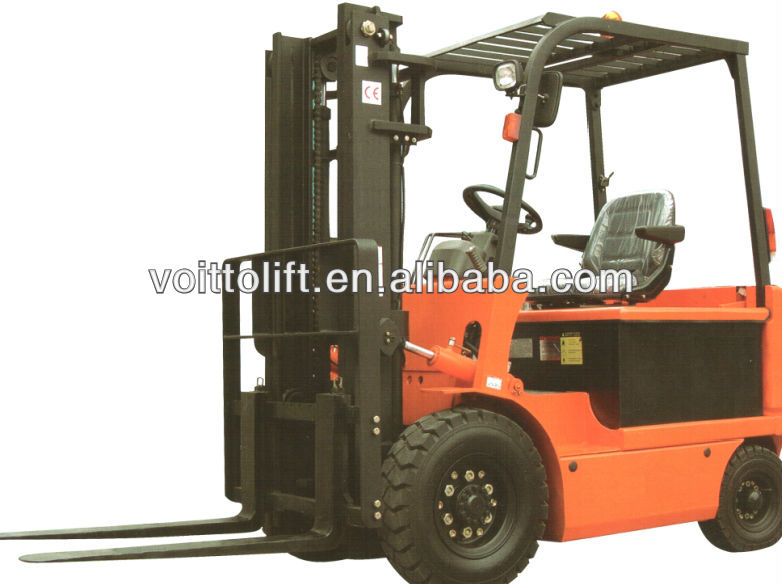

Four-wheel Electric Forklift J Series

Model: CPD-J Series

electric forklift manual

Features:

1.Electric motor and electric control with the separate excitation

2.Increased stability, durability, and battery lift

3. High quality electronic elements with brands

4.Full-open cover with additional safety lock

5.Two-control & two-door design for convenient maintenance

6.Optional electronic or hydraulic overload protection device to add safety

Model			CPD-J15A (AC) CPD-J15S (Semi-AC) CPD-J15D (DC)	CPD-J18A (AC) CPD-J18S (Semi-AC) CPD-J18D (DC)	CPD-J20A (AC) CPD-J20S (Semi-AC) CPD-J20D (DC)	CPD-J25A (AC) CPD-J25S (Semi-AC) CPD-J25D (DC)	CPD-J30A (AC) CPD-J30S (Semi-AC) CPD-J30D (DC)
Power Type			Battery	Battery	Battery	Battery	Battery
Rated Capacity		kg	1500	1800	2000	2500	3000
Load Center		mm	500	500	500	500	500
Lifting Height		mm	3000	3000	3000	3000	3000
Free Lifting Height		mm	70	70	135	135	85
Fork Size		mm	920 x 100 x 40	920 x 100 x 40	1070 x 120 x 40	1070 x 120 x 40	1070 x 125 x 45
Fork Spread (Outside)		mm	250 - 950	250 - 950	245 - 1020	245 - 1020	260 - 1100
Mast Tilting Angle		deg	6 / 12	6 / 12	6 / 12	6 / 12	6 / 12
Overall dimensions	Overall Length	mm	2950	2950	3390	3430	3615
	Overall Width	mm	1080	1080	1150	1150	1230
	Mast Lowered Height	mm	1993	1993	2070	2070	2020
	Mast Extended Height	mm	3000	3000	4030	4030	4100
	Overhead Guard Height	mm	2130	2130	2140	2140	2150
Min. Turning Radius		mm	1820	1900	2050	2050	2255
Min. Right Angle Aisle Width		mm	2100	2100	2100	2100	2275
Speed( Full Load)	Travel Speed	km / h	13	12.5	13	13	14
	Lifting Height	mm / sec	240	220	240	240	250
Max. Gradability		%	15	10	10	10	10
Self Weight		kg	2950	3100	4150	4320	4800
Wheel Base		mm	1250	1250	1500	1500	1600
Min. Mast Ground Clearance		mm	110	110	115	115	105
Battery	Voltage / Capacity	v / Ah	48 / 400	48 / 400	48 / 600	48 / 630	80 / 480
Traveling electric Motor	Rated Output	kw	5	5	8	8	10
Lifting Electric Motor	Rated Output	kw	6.3(7.5)	6.3(7.5)	10	10	13
Electric Control	Manufacturer	/	GE / CURTIS	GE / CURTIS	GE / CURTIS	GE / CURTIS	GE / CURTIS
	Type	/	(Separate excitation &two-control)
Pressure		Mpa	17.5

(1kg = 2.2lbs, 1inch = 25.4mm)
