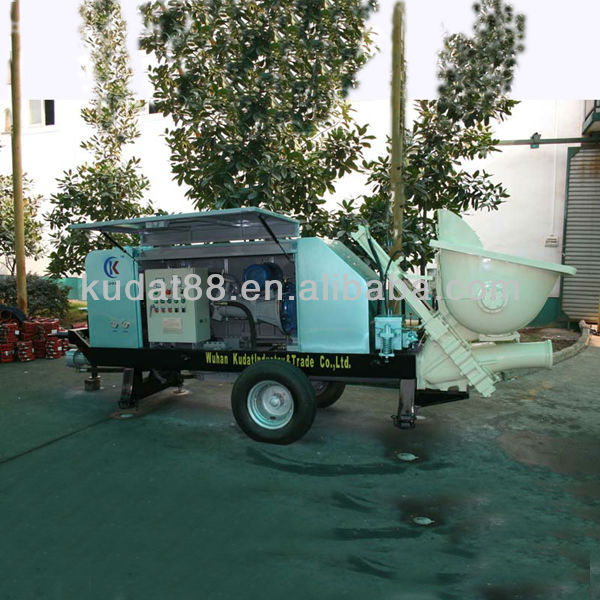

Electric and Diesel Mobile HBT30-1407 CE Concrete Pump
trailer concrete pump:Slide valve, diesel concrete pump, Mobile concrete pump, concrete pump:27m3/h productivity - details see: https://www.machineto.com/electric-and-diesel-mobile-hbt30-1407-ce-concrete-pump-10092784
| Condition:New | Place of Origin:Hubei China (Mainland) | Brand Name:kudat | Model Number:HBT30-1407 |
HBT30 & HBT40 concrete pump main spec:
| Specification | HBT30-1407 | HBT40-1406 |
| Valve | Slide valve | Slide valve |
| Max. concrete pump pressure | 7.4Mpa | 6.4Mpa |
| Max. thero. Concrete delivery | 27m3/ h | 36 m3/ h |
| Max. vertical delivery | 110 M | 100 M |
| Max. horizontal delivery | 500 M | 450 M |
| Max. aggregate size | 40(125A) | 50(150A) |
| Diameter of delivery cylinder ×stroke | 195×1400mm | 195×1400mm |
| Slump | 8-23cm | 8-23cm |
| Oil cylinder ×stroke | 100×1400mm | 90mm×1400mm |
| Hopper capacity/ material feeding height | 0.25/1380 m3/mm | 0.25/1380 m3/mm |
| Main electric motor | 45kw(37kw optional ) | 45kw(37kw optional ) |
| Mixing electric motor | 4kw | 4kw |
| Power supply | 380V/50Hz | 380V/50Hz |
| Total quality | 2600kg | 2600kg |
| Overall dimension | 5060×1200×1760mm | 5060×1200×1760mm |
| Packaging Detail:it can be loaded in container |
| Delivery Detail:within 30 days |
