Effective washing filling caping machine
Water filling machine1, Produce water2, Easy to control3, Filling condition: normal temperature, normal pressure - details see: https://www.machineto.com/effective-washing-filling-caping-machine-10001445
Place of Origin:Zhejiang China (Mainland) | Brand Name:accurate | Model Number:QGF-120 | |
Water filling machine
Product Description

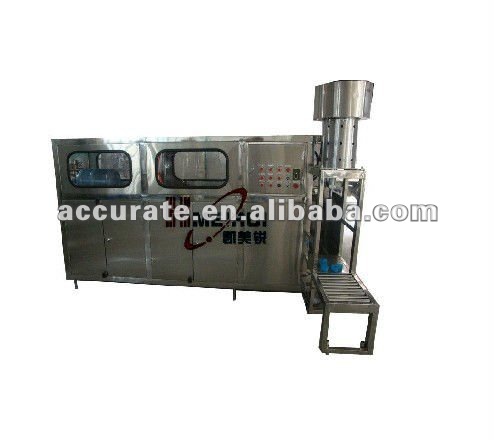

5 Gallon Barreled Water Filling Machine
This Barreled Water Filling machine specially produce 3-5 gallons barreled drinking water, those types(barrels/hour)are: 150 type, 300 type, 450 type, 600 type, 900 type, 1200 type.
It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose washing and sterilizing washing machine use multi-washing liquid spray and-thimerosal soray, this merosal can be used circularly. The sealer can seal barrel caps automatically.
This line equips with water spraying device in order to ensure those caps sterile and clean, also this line can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modem desugn and high degree of automation it is a new kind of barreled water auto-producing line, which intgrates mechanism, electricity and pneumatics technologies together.
Technical Parameter of the Barreled Water Filling Machine (Water Filling Machine):
Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | |
Filling heads | 1 | 2 | 3 | 4 | 6 | 8 | |
Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | |
Capacity | 120b/h | 300b/h | 450b/h | 600b/h | 900b/h | 1200b/h | |
Gas pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | |
Gas consumption | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | |
Moto power | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | |
Rated voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
Packaging Detail:wooden pakage |
Delivery Detail:30 days |
