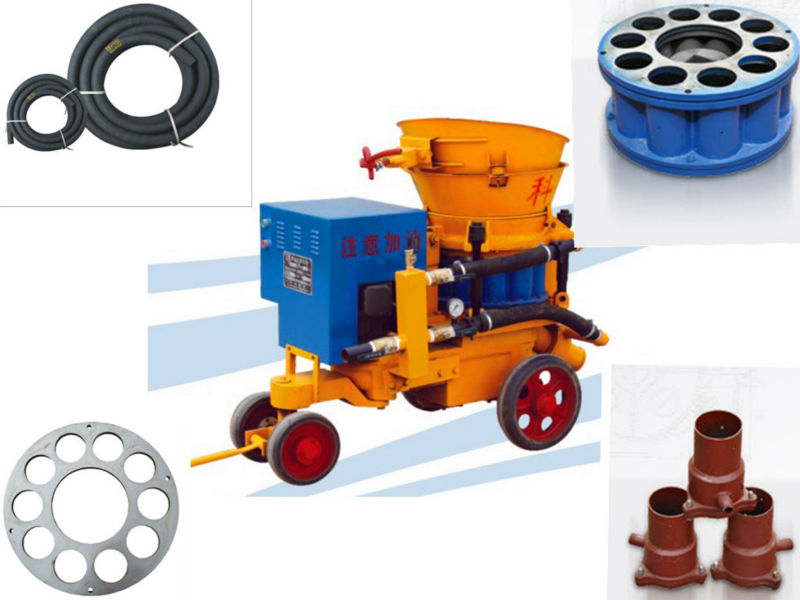

easy-to-use PZ-5-1 Dry Shotcrete Machine

PZ-5-1 Dry Shotcrete Machine For Sale, 1.widely used in constructions, 2.mining equipment, 3.various types, 4.durable,fine quali - details see: https://www.machineto.com/easy-to-use-pz-5-1-dry-shotcrete-machine-10095917

Condition:New	Max. Conveying Distance:200/40m	Max Aggregate Size:15mm	Hose Inner Diameter:51 mm
Air Consumption:7-8m3per min	Place of Origin:Henan China (Mainland)	Brand Name:Keming	Model Number:pz-5-1
Voltage:380v/660v or 660v/1140v	Power(W):7.5kw	Dimension(LWH):15208201280mm	Certification:iso
Warranty:1year	After-sales Service Provided:Engineers available to service machinery overseas

easy-to-use PZ-5-1 Dry Shotcrete Machine

contact supplier for easy-to-use PZ-5-1 Dry Shotcrete Machine

Advantages :
1.PZ-5-1 Dry Shotcrete Machineis widely used in constructions.
2.mining equipment
3.various typesofPZ-5-1 Dry Shotcrete Machine
4.durable,fine quality&property

5.reasonable pricePZ-5-1 Dry Shotcrete Machine

6.Fumigation-free wooden cases for package

7.short delievery time

8.easy payment terms: T/T or L/C

9.ISO certification

10.numerous customers all over the world

The spray Gunof PZ-5-1 Dry Shotcrete Machine
The design philosophy has been to bring to the market a complete system based on decorative decor manufacture. Our spray head has been tailored to meet this market.Every effort was made to develop the smallest profile pracitcal and to bring all the service channels into the gun in such a way as to allow for a naturally unhindered flexibility for the operator as well as allow for the Spray Head to operate freely inside restricted enviroments like a closed mold .

All the service connectors ofPZ-5-1 Dry Shotcrete Machineare miniature snap on air fittings which allows easy separation for cleaning and maintenance and adds minimum weight. All service hosingofPZ-5-1 Dry Shotcrete Machineis 51mm ID highly flexible polyurethane tubing to provide the minimum resistance to the operator.

Technical parameter:

Capacity	5-5.5m³/h
Conveying distance(level / vertical )	200/40m
Suitable water cement ratio	1: 3-5
Max. Aggregate size	20mm
Inner diameter of feed delivery pipe	51mm
Rated working pressure	0.2-0.4Mpa
Gas consumption	7-8m³/min
Motor power	5.5kw
Voltage grade	380v/660v
Machine track gauge	600/900mm
Dimension	15208201280mm

Company profile:

Henan Research Institute of Coal Science Co., Ltd established in March of 1979. At the beginning of its creation, it is a

member of National Ministry of Coal Industry, mainly bears ministry and provincial scientific research projects. Over

the years, it undertakes over one hundred projects authorized by original coal industry, Henan science and technology

commission and coal enterprises bid inviting and it made scientific and technological achievements more than 90

items, won 45 awards, fulfilled technical consulting service over 110 items and more than 10 items of patent awards.

In 1999, according to the deployment of national scientific research system reform, the original Henan Research

Institute of Coal Science, listed as one of the national first batch of 242 enterprising science research institutes is

delegated to Henan province with apanage management.

Keming Mechanical & Electric Department directly subordinate to Henan Research Institute of Coal Science expands

from a pilot plant supported by abundant scientific research strength of Henan Research Institute of Coal Science.

Now it develops into a leading enterprise in the industry of concrete spraying machine and is formed by concrete

spraying machine as the main body of series of diversified products. It owes high reputation in society with high quality

and technology.
