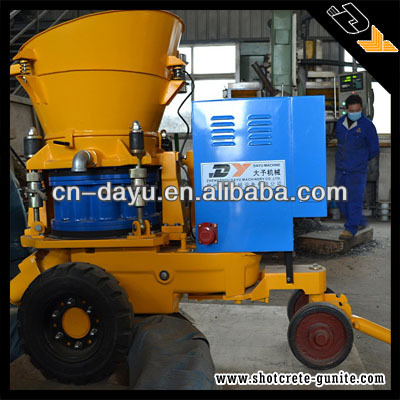

DY-PZ-5 Dry-mix Electric Shotcreting Equipment

DY-PZ-5 Dry-mix Electric Shotcreting Equipment, Output:5.5m3/hour, Max. Conv. Dist:H200m;V80m, CE,ISO9001, Fast delivery - details see: https://www.machineto.com/dy-pz-5-dry-mix-electric-shotcreting-equipment-10095881

Condition:New	Place of Origin:Henan China (Mainland)	Brand Name:Dayu	Model Number:DY-PZ-5
Output:5.5m3/hour	Motor power:7.5KW	Overall dimension:15001320830	Basic chassis:Type; Skid; Rail-wheel
Power model:Electric	Warranty:12months	Performance:Excellent

ZhengzhouDayu Machinery Co., Ltdis a professional shotcreting equipment manufacturer in China, with CE, ISO certified. Warranty: 12months.

Our product scope:

Shotcreting equipment

Plaster equipment

Mortar Pump

Grout Pump

Industry Hose Pump

Grout Mixer

Auto rendering equipment

Dry-mix Electric Shotcreting Equipment Description:

Shotcrete equipment process is to use compressed air to convey the pre-dampened mix through delivery hose to the nozzle to project the material onto the sprayed surface under high velocity, and then to form concrete support layer after the projected material coagulates and hardens. With simple technology, special effect, economy cost, flexibility and high construction efficiency, shotcrete technology has widely been applying in construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc. and showing prosperous future.

DY-PZ-5 Dry-mix Electric Shotcreting Equipment has 3 models:

DY-PZ-5 (Electric driven)

DY-PZ-5 (Diesel engine driven)

DY-PZ-5 (Air motor driven)

Dry-mix Electric Shotcreting Equipment features:

1:Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

2:Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

3:Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

Dry-mix Electric Shotcreting Equipment technical parameters:

Type	DY-PZ-3	DY-PZ-5	DY-PZ-9
output	3 m3/h	5.5 m3/h	9m3 /h
Max.conv.dist	200 m	200 m	150 m
Water cement ratio	< 0.4	< 0.4	< 0.35
Max.Aggregate.size	10 mm	15 mm	20 mm
Hose inner size	φ42/50 mm	φ50 mm	φ64 mm
Operating air pressure	0.2-0.6 MPa	0.2-0.6 MPa	0.2-0.6 MPa
Air consumption	5-6 /min	7-8 /min	9-10 /min
Motor power	3 kW(4hp)	5.5 kW(7.5hp)	7.5 kW(10hp)
