cement ball mill has advantages:, 1:high efficiency,, 2:fine powder product,, 3:big capacity,, 4:stable operation. - details see: https://www.machineto.com/dry-type-cement-ball-mill-for-grinding-10313938

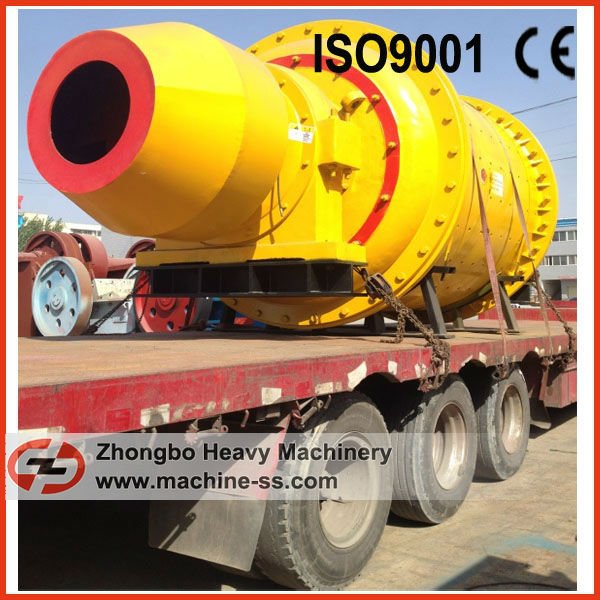

dry type cement ball mill for grinding

Zhongbo dry type cementgrinding Ball Millhas the advantages of high efficiency, fine powder, big capacity, stable operation and easy maintenance.

I.Introduce of Zhongbo Ball mill:

This machine changes the intrinsic grinding machine structure Its body and groound plank are an integral whole.So when fixing, It can be located on plane surface only once. Use double tier roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern controlling one. This can improve the milling of the granule an dthe capacity is incrased by 15-20%

II. Application of Zhongbo Ball mill:

Ball mill is widely used in mining, building materials and chemistry industries. According to the milling way, the ball mill can be divied into dry and wet types. According to ways of discharge, the ball mill can be divided into lattice and overflow types or center-discharge and side-discharge types. In accordance with the different kinds of support, it can be divided into Bearing Mill and Bushing Mill. In accordance with the different kinds of transmission, it can be divided into edge and center types. The mills with the diameter above 3m allocate jaking devices for easy maintenance. So the dynamical pressure bearing and the static pressure bearing can operate stable. the low speed transmission is convenient for maintenance and starting. And the oil mist spray lubrication device ensures the reliable lubricating of big and small gears. Generally, the main motor of the large mill is high pressure asynchronous motor or synchronous motor. So customers should indicate the motor type in order,

III. Technical Parameter of Zhongbo Ball mill:

Model	Rotary speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Motor power(kw)	Weight(t)
Ø900*1800	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	48.5
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137

For more model and technical information, please contact with us directly.
