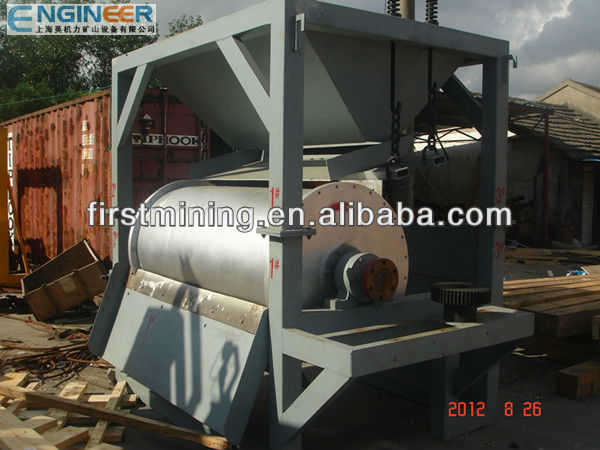

dry iron slag magnetic separator

Mint Condition,, Wear-resisting,, Simple Opeation,, Worthy Quanlity,, Good Price. - details see: https://www.machineto.com/dry-iron-slag-magnetic-separator-10314299

Condition:New	Type:Magentic Separator	Capacity(t/h):3 t/h---500 t/h	Place of Origin:Shanghai China (Mainland)
Brand Name:Engineer	Model Number:Series	Rotation Speed (r/min)::45	Grinding Way::Wet or dry
Power(kw)::3-45	Weight(t)::2-80

contact supplier for dry iron slag magnetic separator

The Magnetic Separator can separate the raw materials with different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters from 220 mm to 3, 050 mm.

Model	Dimension of Tube	Capacity (m3)	Power (KW)	Rotating Speed(r/min)
CTB44	400x600	3	1.1	45
CTB46	400x600	5	1.1	45
CTB66	600x600	16	1.1	40
CTB69	600x900	24	1.1	40
CTB612	600x1200	32	2.2	40
CTB618	600x1800	48	2.3	40
CTB712	750x1200	48	3	35
CTB718	750x1800	72	3	35
CTB1050	1050x1800	95	4	30

1.Can be used in preliminaries working for low grade ore
2.Tailing reclaim
3.Purification for sulfuric-acid residue dry powder
4.Iron removing for non-ferromagnetic material
5.Purification for concentration powder.

The quality guarantee is 12 months after finishing the trial run of machines which has been shipped to the buyer side. If any part (excluding easily damaging parts) is found defective in quality within warranty period, we would like to replace it for free. After warranty, spare parts can be replaced based on favorable price.
