dry grinding ball mill direct manufacturer in China

ball mill:, 1.For cement, silicate, ceramic, 2.Wet or dry ball mill, 3.Overflow or grate ball grinder, 4.ISO9001-2000 - details see: https://www.machineto.com/dry-grinding-ball-mill-direct-manufacturer-in-china-10314167

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):380kw
Capacity(t/h):14-26 t/h	Place of Origin:Henan China (Mainland)	Brand Name:Huazhu	Model Number:2200*6500
Dimension(LWH):As different model	Weight:52.8t,52.8T	Certification:CE	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas	Rotational speed:21 r/min	Balls weight:31 T	Material-in size:less than 25mm
Material-out size:0.074-0.4 mm	Motor Power:380 kw	Certificate:ISO9001-2008	Grinding Way:Wet or Dry
Installation:Under our engineer's guide	Operation:Easy

China manufacturer

With competitive price

Offer OEM service

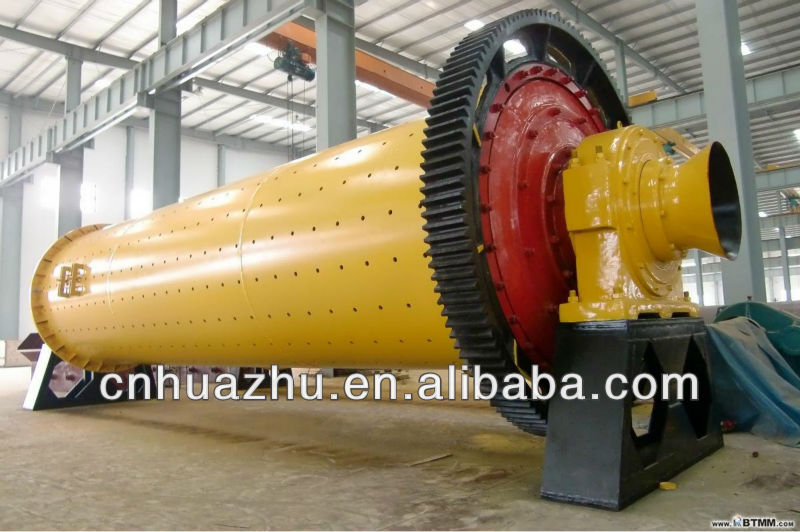

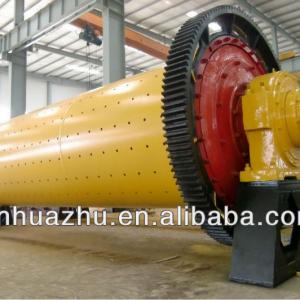

Ball Mill

Application:

This machine is widely used in Mineral industry department including cement,fireproof materials,chemical material,non-ferrous metal and ferrous metal etc, for grinding all kinds of ores and other grinding materials .It have a virous capacity to meet the different customers,we have export to Philipine,Thailand, Russia,Mongolia, etc.

Ball mill Working Principle:

Theball millis a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Main Technical Parameters:

Type	Rotational speed r/min	Balls weight t	Material-in size mm	Material-out size mm	Yield t/h	Motor power kw	Weight t
Φ900x1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Φ900x3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.5
Φ1200x2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	11.5
Φ1200x4500	32	7	≤25	0.074-0.4	1.6-5.8	55	13.8
Φ1500x3000	27	8	≤25	0.074-0.4	2-5	90	17
Φ1500x4500	27	14	≤25	0.074-0.4	3-7	110	21
Φ1500x5700	27	15	≤25	0.074-0.4	3.5-8	132	24.7
Φ1830x3000	24	18	≤25	0.074-0.4	4-10	180	28
Φ1830x7000	24	25	≤25	0.074-0.4	7.5-17	245	36
Φ2200x5500	21	30	≤25	0.074-0.4	10-22	370	48.5
Φ2200x6500	21	31	≤25	0.074-0.4	14-26	380	52.8
Φ2200x7500	21	33	≤25	0.074-0.4	16-29	380	56
Φ2400x4500	21	30	≤25	0.074-0.4	8.5-60	320	65
Φ2700x3600	20.6	39	≤25	0.074-0.4	12-70	400	91.3
Φ2700x4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Φ2700x4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Φ3200x4500	18	65	≤25	0.074-0.4		800
