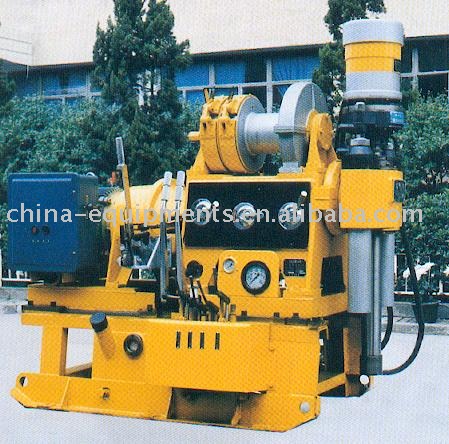

Drilling Machine

Use in water and electricity engineering propspecting, the dam foundation drilling, engineering geological and blasting drilling - details see: https://www.machineto.com/drilling-machine-10125089
Condition:NewCNC or Not:CNCPlace of Origin:Zhejiang China (Mainland)Brand Name:Candid Drilling Machine
Model Number:SGZ-IIIA Drilling MachineDrilling MachineDrilling Machine:Drilling Machine
Drilling Machine
contact supplier for Drilling Machine


Drilling Capacity
Depth300m
Dia.of Rod42,50,53mm
Angle Range0-360
Swivel Head
Speed of Spindle128,200,300,514,800,1200rpm
Stroke of Spindle500mm
Inner Dia.of Spindle60mm
Thrust Force22.5kn
Lift Force36kn
Hoist
Hoisting Capacity(single line;low speed)2000kg
Bare Drum Line Speed0.24,0.37,0.55,0.94,1.46,2.18m/s
Drum Length185mm
Drum Dia.165mm
Drum Capacity(wire dia.13mm)42m
Sliding Device
Sliding Length of the Frame350mm
Transmission
TrpeSliding Gear
Speed Change6 Forward
Hydraulic Pump
TypeCB-Fa25C-FL Gear Pump
Speed1500 rpm
Working Pressure16 Mpa
Power Unit
Diesel Engine
Type485Q
Normal Output25PS
Normal Speed1500 rpm
Electric Motor
TypeY180M-4
Normal Output18.5kw
Normal Speed1470 rpm
Overall Dimensions1800*1095*1562mm(include electric motor)
1950*1096*1562mm(include diesel engine)
Weight(without Power Unit920kg
Drilling Machine
Packaging Detail:Nude
Delivery Detail:45 days
