1.CE certified, 2.Competitive, 3.For packing capusles, tablets, pills, 4.Prompt delivery, 5.PLC Control and touch screen - details see: https://www.machineto.com/dpp-260ki-blister-packing-machine-10053298

Applications:

1. This machine mainly be used in packing pharaceutical products, such as tablets, pills, capsules and drugs.

2. This packaging way(blister-pack) can impove product's quality, enhance product's additional value.

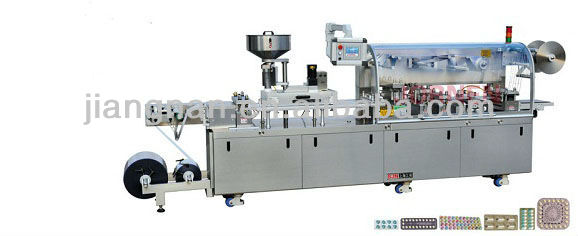

DPP260Ki Blister Machineis a deluxe edition of DPP260K2.

· The pursuit of detail perfection is evident throughout the design and production process.

· All the main parts are made of premium stainless steel and alu-alloy material, and machined by

advanced high precision CNC tooling machines.

· Exquisite Camber transparent cover (assures safe operation) and special surface treatment of stainless

steel adds to its elegance.

· The machine can achieve 180 minutes of uninterrupted production thanks to a forming material reel of

up to 600mm in diameter and a waste material trimming cutter (optional).

· Equipped with integrated forming material splicer and automatic format positioning system to achieve

straightforward format changeovers.

· Using a fast lock method enables replacement of lidding material easily within 10 seconds.

· Separation of drive and operating zones are in compliance with pharmaceutical GMP requirements.

· Material drag system adopts a precise servo motor to achieve stable, accurate running and allows blister

length to be set freely.

· Sealing cylinder is placed inside the machine’s body to improve machine structure.

Main Technical Parameters:

Max. Speed:	alu/alu 40 punches/min. alu/pvc 70 punches/min.
Max. Output:	280 blisters/min. (alu/pvc blister size 57×80mm)
Max. Forming Area:	245×152mm
Max Forming Depth:	12mm
Material:	Max. width 260mm
Machine Power:	9.6kw
Machine Dimension:	4 stations: 4200×740×1700mm 5 stations: 4450×740×1700mm
Machine Weight:	4 stations: 1800kg 5 station: 1950kg

1. Material splicing table and blister forming station.

2. The universal feeder consists of two circular brushes and planetary agitators,

which sweep the products into blister pockets. Format parts are not required.

3. The flat tablets are fed via tracks into the aluminum blisters.

4. The flat tablets, capsules or oblongs are fed via tubesinto the aluminium blisters.

5. Integrated product inspection system with color camera

can reject faulty blisters automatically.

6. Hot sealing Station and Embossing Station.

7. Waste material trimming cutter
