double slipper ball bearing mill production can improve 15-20%, power save 10%, finished material temperature lower 20-40 degree - details see: https://www.machineto.com/double-slipper-ball-bearing-mill-with-reasonable-price-10314227

whole cement production line can be designed for you.

Double slippers Ball gearing mill introduction

the new cement mill adopt double slippers technology, it's a kind of centre drive ball mill. it shorten the ball mill span, reliable supporting, thin the mill body, so the total weight is lighter.

How to improve capacity of ball mill machine

1) First crusher can be placed before ball mill, to produce suitable size for ball mill.

2) Install high efficiency power separator to discharge suitable power timely.

cement mill technical data

Model	Milling form	Transmission form	Gear box		Motor power(kw)	Capacity (t/h)	Weight(t)
			Type	Speed reduction ratio
φ1.83×7	Open flow	Brim	ZD60	4.5	245	6.5-8	36
φ2.2×7.5	Circle flow	Brim	ZD70	5	380	8-10	56
φ2.2×11	Open flow	Central shaft	D110	35.5	630	12-13	104.6
φ2.2×13	Open flow	Central shaft	D110	35.5	630	16-18	114
φ2.4×13	Open flow	Central shaft	D110	35.5	800	20-23	171.5
φ2.6×13	Open flow	Central shaft	MFY100	19.5	1000	28-32	149.7
φ3×9	Circle flow	Brim	D125	41.2	1000	28-36.5	136.4
φ3×11	Circle flow	Central shaft	D140	42.8	1250	36-47	180
φ3.2×13	Open flow	Central shaft	D140	36.5	1600	45-50	198
φ3.8×13	Open flow	Central shaft	MFY250	16.5	2500	60-62	204

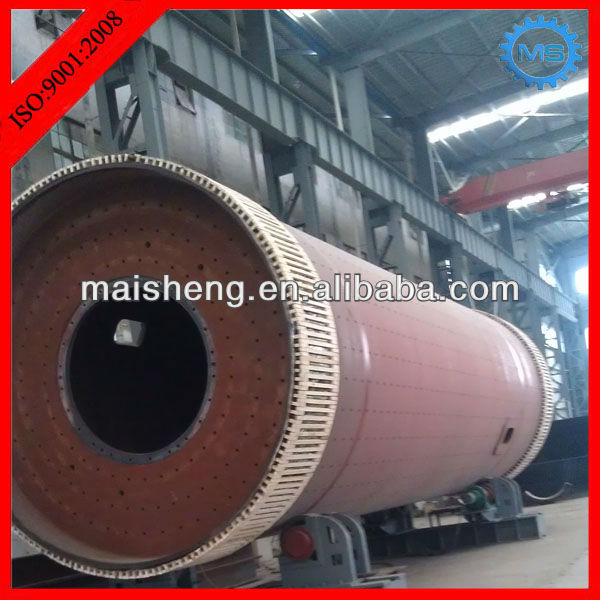

Ball Mill Pictures

Ball Mill Plates

Workshop
