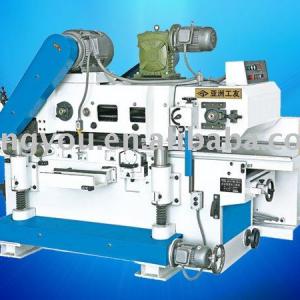

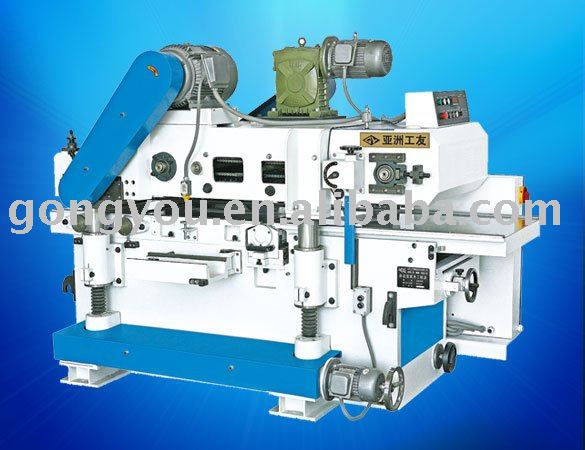

Double Sides Planer
Doubel side planer - details see: https://www.machineto.com/double-sides-planer-10354120
| Condition:New | Type:Double Side Planer | Place of Origin:Shandong China (Mainland) | Brand Name:GY |
| Model Number:MB206E |
Doubel side planer
| MB206E | MB206E | ||||
| Max. planing width | mm | 630 | Cutting diameter | mm | 112 |
| Max. planing thickness | mm | 120 | Top horizontal cutter arbor motor | kw | 11 |
| Min. planing length | mm | 300 | Bottom horizontal cutter arbor motor | kw | 7.5 |
| Min. planing thickness | mm | 10 | Feeding motor | kw | 3 |
| Top cutter planing capacity | mm | 7 | Lifting moter of feed mechanism | kw | 0.75 |
| Bottom cutter planing capacity | mm | 5 | Overall dimensions | mm | 2500×1440×1685 |
| Feeding speed | m/min | 6-18 | Net.weight | kg | 3200 |
| Spindle speed | r/min | 5000 |
| Packaging Detail:PLYWOOD CASE |
| Delivery Detail:25days |
