Double-head tube end forming machine

double head tube end forming machine, 1. hydraulic, 2. NC control, 3. high speed and high precision, 4. double head. - details see: https://www.machineto.com/double-head-tube-end-forming-machine-10081729
Type:Pipe Production LinePipe Material:Stainless SteelApplication:Energy Supply PipePlace of Origin:Jiangsu China (Mainland)
Brand Name:GangxingModel Number:TM40NC X 2H-2Sforming machine:pipe end forming machine
Double-head tube end forming machine
contact supplier for Double-head tube end forming machine

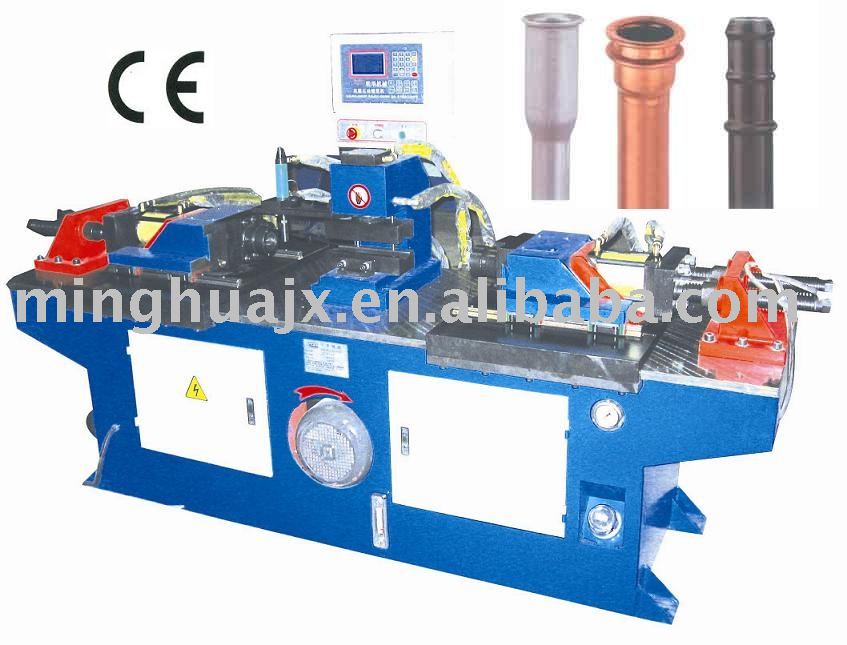

SM40NC hydraulic automatic tube end forming machine, with the straight guide roller as the carrier, can run without abrasion, and the products have a good repeatability, which are fit for the treatment of the pipe end in iron pipes, furniture, automobile air conditioners and fuel oil pipes.
Specification/ModelSM40NCRemark
Max processing capabilityΦ40mm×2mm1.The max processing length of tube end forming machine can according to customers requirement
2.The distance of double head of tube end forming machine can according to the customers requirement
Max processing length100mm
The distance of double head150mm
Oil pressure4.5Mpa
Working speed100mm in 3-4/s
Size
2000mm x 550mm x 1300mm
Weight1100kg
Double-head tube end forming machine
Packaging Detail:the tube end forming machine is packed in Iron case
Delivery Detail:the lead time of tube end forming machine is 30 days
