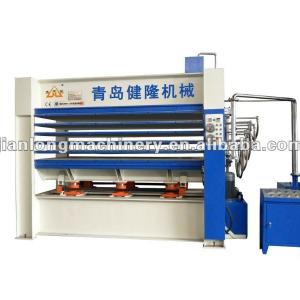

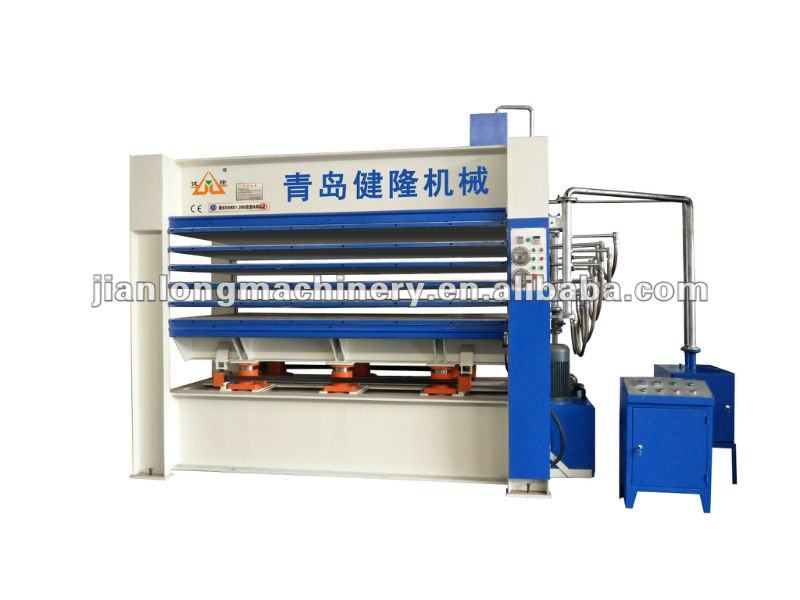

Door Hydraulic Hot Press machine
1) Door hot press, 2) total pressure 160ton, 3) Plate size : 1300x2500mm, 4) Number of layer : 5, 5) Number of cylinder : 8 - details see: https://www.machineto.com/door-hydraulic-hot-press-machine-10344079
| Type:Hot Press Machine | Place of Origin:China (Mainland) | Brand Name:Jianlong | Model Number:BY214x8/16(5)H |
| certificate:CE and ISO9001 |
| Model | BY214x8/16(5)H |
| Total pressure | 160ton |
| Dimension of hot platen | 2500x1300x42mm |
| Number of layers | 5 |
| Opening | 80mm |
| Diameter & stroke of Oil cylinder | 100mmx400mm |
| Number of cylinders | 8 |
| Heating medium | Steam or thermal oil |
| Working pressure of high pump | 25Mpa |
| Total power | 5.5Kw |
| Heating system power | 37.5Kw |
| Overall dimension (Approx) | 3800x1500x2320 approx |
| Net Weight (Approx) | 12300Kg |
| Packaging Detail:as the requirement in the order |
| Delivery Detail:20 days |
