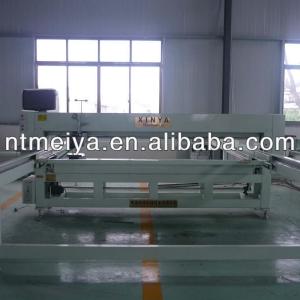

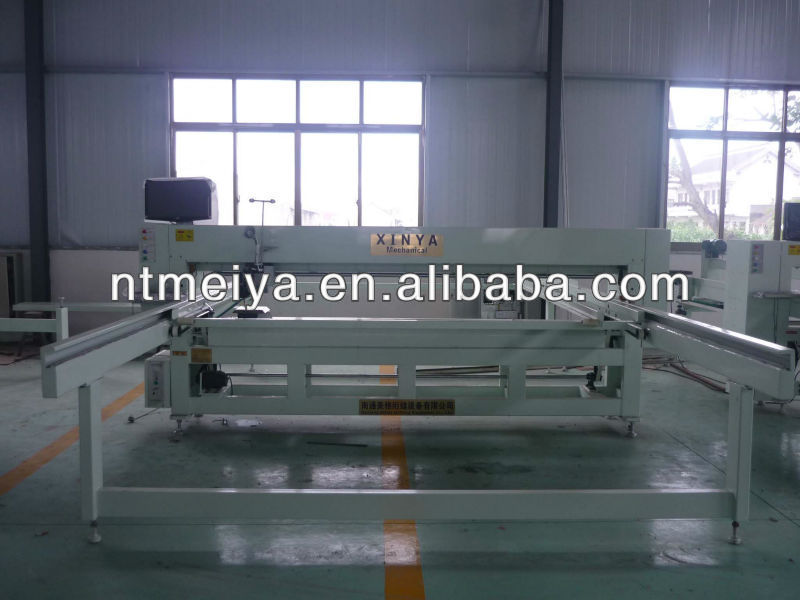

DH26A computerized quilting machine

DH26 A computerized quilting machine, sewing bedspread,mattress,quilts, single needle head moving, inverter drive 300 patterns - details see: https://www.machineto.com/dh26a-computerized-quilting-machine-10279245

Condition:New	Type:Other	Place of Origin:Jiangsu China (Mainland)	Brand Name:xinya
Model Number:DH-26	Voltage:220	Power(W):1500	Weight:1200kg
Dimension(LWH):4.541.4	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas	color:according to your demand

contact supplier for DH26A computerized quilting machine

DH26A computerized quilting machine single needle quilting machine

The perfect design and manufactured make stitch trace look symmetrical and beautiful.meet output requriments.

characteristics:

1.The perfect design and manufactured make stitch trace look symmetrical and beautiful.

2.All patterns and working program are stored in a 3.5 floppy disk.

3.Operators can select working parameters required ,such as single stitch and sewing speed etc.

4.The stitch trace is shown on the screen in different color from the rest while being quilted.

5.If the thread breaks,the head will automatically go to the rethread position by the side of the machine.After rethread,the head can go back to where the thread broke and return further several stitches along original path,then start sewing again.

6.When quilting is over,the machine go back to the start position.The quilt frame can shift some stitches given fast forward or backward along the pattern path.

Parameter:

Quilting size: 2.6*2.8mMax

Needle Drop Size:2.4*2.6mMax

Sewing machine: Single-line style,double-line lock style,big rotary shuttle

Sewing Thickness: 1200/m*m(Mas)

Sewing speed: 2000spm stitch length:2-7mm

Dimensions 5*4*1.4m

Power: 220VAC,50HZ,1.5KW

Weight: 1200kg
