Decanter Centrifuge for Limed Fleshings Treatment
| Condition:New | Automatic Grade:Automatic | Place of Origin:Jiangsu China (Mainland) | Brand Name:Huada |
| Model Number:LW | Type:Other | After-sales Service Provided:Engineers available to service machinery overseas | MOC:Stainless Steel |
| operatation:automatic continuous operation | discharge:scroll discharge | centrifugal type:decanter centrifuge | control:PLC control |
| application:chemical/pharmaceutical/food industries | certificate 1:machinery safty certificate | certificate 2:ISO9001 |
Decanter Centrifuge for Limed Fleshings Treatment
Decanter
Centrifuge
Process | Applications | Design Features| Technical Parameters

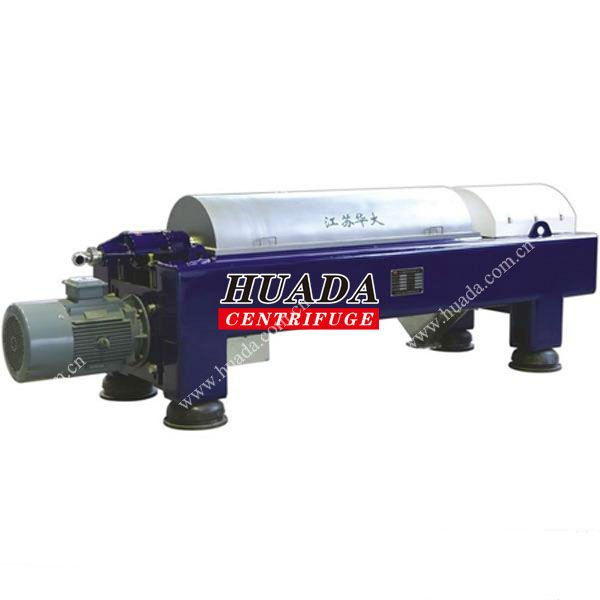

LW series decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging.The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.
Applications
1. Oil &gas drilling mud/fluid control
2. Industrial and municipal wastewater treatment
3. Fine Chemical slurry
4. Coal and minerals (float wash of extractive coal and dewatering of coal mud)
5. Pharmaceutical industry (antibiotic)
6. Food processing
-Olive oil, palm oil, avocado oil;
-Wine, fruit juice;
-Starch;Surimi ;
-Soybean and wheat protein
Design Feature
♦Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.
Solid Discharge Ports
Liquid Discharge Ports
♦ Dual motor drive makes bowl speed and conveyor speed adjustable.
♦ Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.
Tungsten Carbide Tiles
♦Optional planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment
Hydraulic Bearbox Planetary gearbox
♦Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
Technical Parameters
| Model | Bowl Dia (mm) | L/R Ratio | Bowl Speed (r/min) | G-force | Main Motor power (kw) | Weight (kg) | Dimension(mm) (L*W*H) |
| LW220x880 | 220 | 4 | 4800 | 2840 | 7.5-11 | 1000 | 1850*1200*750 |
| LW355x1460 | 355 | 4 | 4000 | 3100 | 22 | 2020 | 3365*920*1060 |
| LW450x1800 | 450 | 4 | 3500 | 3083 | 30-37 | 3500 | 4200*1090*1250 |
| LW450X2050 | 450 | 4.5 | 3600 | 3260 | 30-37 | 37800 | 4200*1090*1250 |
| LW530x2120 | 530 | 4 | 3200 | 3040 | 45-55 | 4200 | 4885*1230*1350 |
| LW630x2300 | 630 | 3.65 | 2500 | 2205 | 75 | 8000 | 5110*1440*1750 |
| LW720x2665 | 720 | 3.7 | 2000 | 1600 | 110 | 12000 | 5365*3160*1510 |
HUADA Production Process
HUADA Quality Control
HUADA Package & Delivery
| Packaging Detail:Standard with wooden pallet and poly film wrapping |
| Delivery Detail:45 working days after down payment |
