CXFJ Rubber Fine Miller(CXFJ-28)

The CXFJ Rubber Powder Fine Miller is used to mill 2-6mm pure rubber powder from 40-200mesh in ambient process. - details see: https://www.machineto.com/cxfj-rubber-fine-miller-cxfj-28-10314020

Condition:New	Type:Rubber Fine Miller	Power(W):30810	Capacity(t/h):60-160kg/h
Place of Origin:Jiangsu China (Mainland)	Brand Name:CXFJ	Model Number:CXFJ-28	Weight:1.2T
Certification:CE CCC CQC ISO	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas

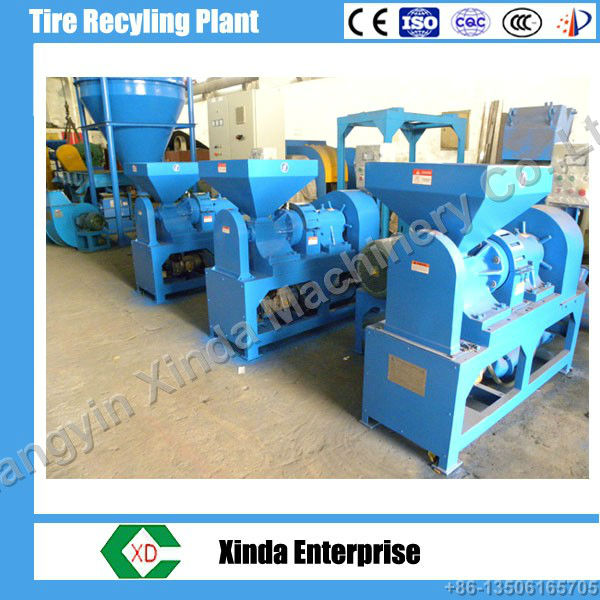

CXFJ Rubber Fine Miller

Introduction

The CXFJ Rubber Powder Fine Miller is used to mill 2-6mm pure rubber powder from 40-200mesh in ambient process. It mainly consists of milling motor, frequency conversion feeder, motor adjusting device, feeding hopper, fixed and rotary milling discs, machine frame, main shaft, collecting pipe, circulate water cooling system.

Structure and Principle

The machine use tungsten carbide as the milling surface of the milling disc, the milling disc base is made of special treated materials. Crashing-proof, wearable durable and good ductility;

The whole machine adopts horizontal structure. Most parts are CNC processed to ensure the installation accuracy. Compact structure, low power and vibration, easy operation and maintenance;

The feeding system adopts ultra-red monitor controlled by PLC to maximum the output. The clearance between fixed and rotary discs are also controlled by PLC motors, which has greatly improved the quality and fineness of the rubber powder;

Internal circulating water cooling system can ensure ideal temperature for the milling discs during production, the rubber powder will not get burned or sticky.

Technical Data
