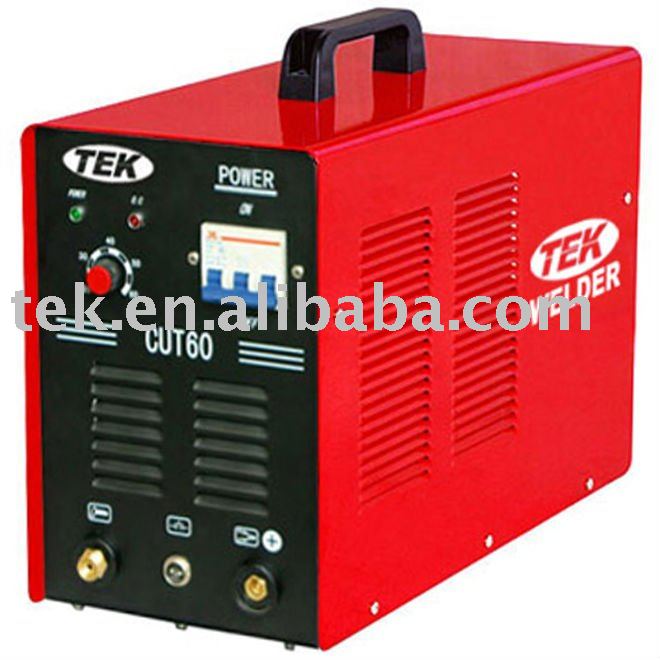

CUT-60
CUT-60 Air Plasma Cutter, 1.CE approved, 2.High cutting frequency, 3.Able to cut 23mm thin plate - details see: https://www.machineto.com/cut-60-10266934
Place of Origin:Fujian China (Mainland) | Brand Name:TEK | Model Number:CUT-60 | Cutting Capacity:Strong |
color:red | | | |
CUT-60 AIR PLASMA Cutting machine: Lightness and small in size, simply operation Current can be adjusted in succession Smooth cutting surface and less deformation Easy initiation by high frequency | | TECHNICAL SPECIFICATIONS | | MODEL | CUT60 | Input power voltage frequency | AC.(single phase)110V~240V±15%50Hz/60Hz | Rated input power capacity | 7.9KW | Nol-load voltage | 236V | Current range | 10-60A | Rated output voltage | 104V | Rated duty cycle | 60% | Efficiency | 85% | Power factor | 0.93 | Insulation class | B | Proctection class of case | IP21 | Arc-starting | Touch | Weight | 19kg | Overall dimension | 480*205*355mm | Cutting thickness | 23mm |
|
|
|
|
Packaging Detail:Carton,Pallets |
Delivery Detail:10 days |
