CRAWLER BULLDOZER SD 22F BULLDOZER, SHANTUI BULLDOZER, SD 22F BULLDOZER, CRAWLER BULLDOZER, USED BULLDOZER - details see: https://www.machineto.com/crawler-bulldozer-sd-22f-bulldozer-10360181

CRAWLER BULLDOZER SD22F BULLDOZER
SHANTUI BULLDOZER
SD 22F BULLDOZER
CRAWLER BULLDOZER
USED BULLDOZER

SHANTUI BULLDOZER series include SD08 bulldozer, SD13 bulldozer, SD16C bulldozer, SD16TL bulldozer, SD16L bulldozer, SD22C bulldozer, SD22Fbulldozer, SD23 bulldozer, SD32 bulldozer, SD42-3 bulldozer.

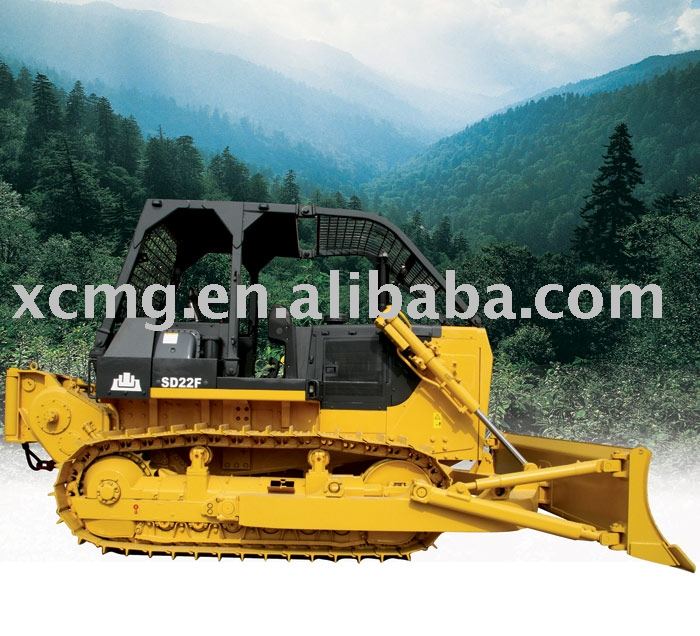

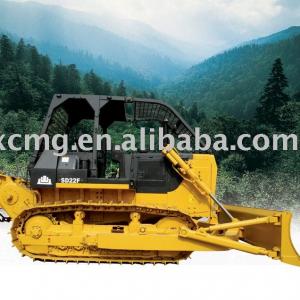

CRAWLER SD22F bulldozer

SpecificationBlade Type	Straight-tilt
Min.ground clearance(mm)	405
Ground pressure(MPa)	0.072
Min.turning radius(m)	3.3
Gradeability(°)	30
Track gauge(mm)	2000
Dozing capacity(m3)	6.4
Efficiency(Theoretical value in 40m(m3 /h)	330
Blade width(mm)	3725
Blade height(mm)	1315
Max.drop below ground (mm)	540
Max.tilt adjustment(mm)	>735
Weight(kg)	2768

ENGINE:

ModelCummins NT855-C280S10
in-l ine,water cooled 4-cycle,overhead valve direct injection,turbocharged diesel
Rated revelution 1800rpm
Rated horsepower 162KW
Cylinder number-bore×stroke 6-139.7mm×152.4
Piston displacement 14010ml
Min fuel consumption 205g/KW.h
Max torque 1030NM/1250rpm

ENGINE:

ModelCummins NT855-C280S10
in-l ine,water cooled 4-cycle,overhead valve direct injection,turbocharged diesel
Rated revelution 1800rpm
Rated horsepower 162KW
Cylinder number-bore×stroke 6-139.7mm×152.4
Piston displacement 14010ml
Min fuel consumption 205g/KW.h
Max torque 1030NM/1250rpm

TRAVEL SPEED:

Gear	1st	2nd	3rd
Foward(km/h)	0-3.6	0-6.5	0-11.2
Reverse(km/h)	0-4.3	0-7.7	0-13.2

UNDERCARRIAGE SYSTEM:

TypeSwing type of sprayed beam,suspended structure of equalizer bar
Carrier rollers2/each side
Track rollers6/each side(single flange4,double flange2)(E-7/each side)
Track typeAssembled single-grouser shoes(38/each side)
Width of track shoes610mm
Pitch216mm

OVERALL DIMENSION

Straighttilt 5459×3725×3361mm
