Copper Wire Rod Production Line, 1. produce bright, low-oxygen copper rods, 2. produce dia.8mm, 10mm and 12mm - details see: https://www.machineto.com/copper-wire-rod-production-line-10368275

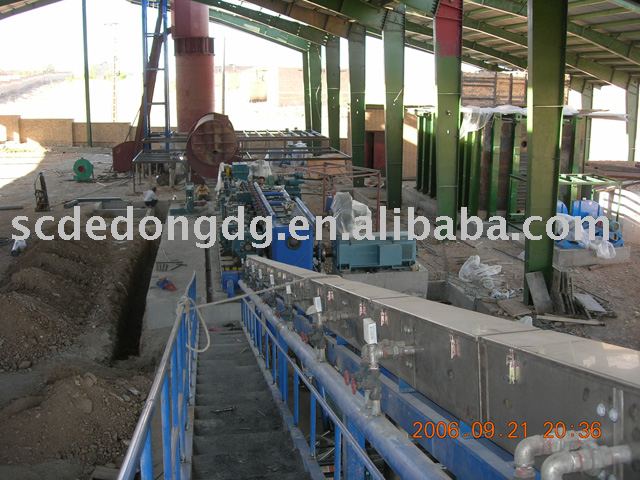

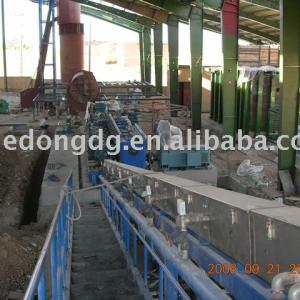

UL+Z-1800+255/12 Scrap Copper Wire Rod Production Line

I. Application

This machine is applied to manufacture 8mm bright copper rod by adopting atechnology of continuous casting and rolling. Red copper scrap ischosen as raw materials. This production line is composed of the following parts:stationary reverberatory furnace, 5-wheel continuous casting machine, automatic shearer, straightener & edge shaver, casting bar brushing machine, continuous rolling machine and orbital coiler, electrical control system, etc.

II. Main Technical Data

1. Dia. of copper rod 8 mm

2. Production capacity 10-14 t/h

3. Coiling weight 3.0-5.0 t

4. Overall dimensions 40×7.8×6.1m (not include the furnaces and recycling cooling and filtering system)

5. Total weight 82 tons (not include the furnace)

6. Total power 600kw (not include the furnace)

III. Components

1. Stationary reverberatory furnace 40t one set

2. 5-wheel continuous casting machine one set

3. Automatic shearer one set

4. Straightening & edge shaver one set

5. Cast bar brushing machine one set

6. Rolling mill one set (including one set of rollers) one set

7. Oil lubrication system for rolling machine one set

8. Emulsion lubrication system for rolling machine one set

9. Rod coiler one set

10. Electrical control system one set

11. Steel belt 200kg (for commissioning use)

IV. Technical Specifications

1. Stationary reverberatory furnace one set

Application: refining the red copper scrap

Type: stationary

Capacity: 60+5%MT

Heating fuel: natural gas or heavy oil

Melting rate: 30t/h

Hearth size: 8250×4140×2200mm (length×width×height)

Furnace temperature control: control the volume of the gas

Gas consumption: 100-110m3 for each ton copper rod

Feeding device: one set

2. 5-wheel continuous casting machine (patent No.ZL00244512.3) one set

Dia. of crystallizing wheel 1800 mm

Rotating speed of wheel 1.84-2.814 r/min

Casting bar speed 10.17-15.56 m/min

Cross section of casting bar 2100 mm2

Motor 5.5 KW (D.C)

Cooling water pressure 0.3-0.5Mpa

Cooling water consumption 170 m3/h (soften water)

5-wheel Continuous Casting Machine is composed of the following parts:

Crystallizing wheel, compress wheel, tensioner, guide wheel, ladle, cooling unit, steel tape blowing device, dust sweeper, heater for carbon coating, cast bar stripper, guide bridge, carton coating device, carbon-coating device, caster pinch roll set, regulator for molten copper inflow and pneumatic control unit, etc.

3. Automatic shearer one set
