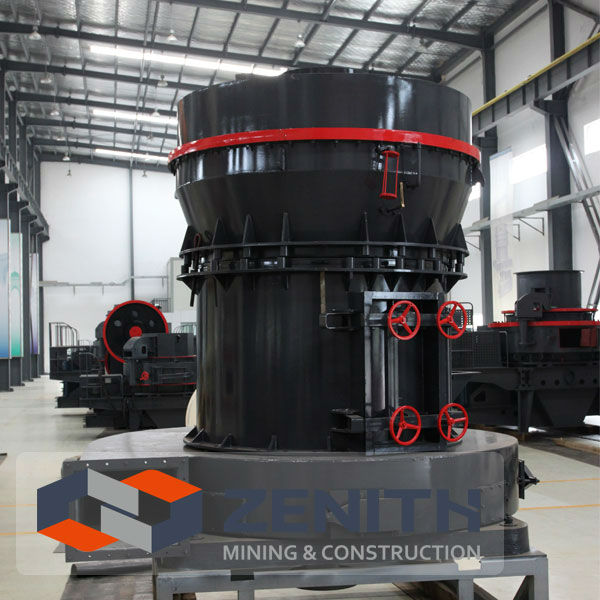

copper grinder machine, 1.High capacity and low consumption, 2.stone milling machine,stone grinder, 3.Reliable Security - details see: https://www.machineto.com/copper-grinder-machine-stone-grinder-10314478

Stone milling machine,stone grinder

Stone milling machine is a new kind of machine for producing fineness and ultra-powder.

Grinding mill is mainly used for grinding the materials, whose hardness is middle and low, moisture below 6%, and Grinding mill's Moths hardness should be blow 9 grade and non-explosion and non-flammability, such as: calcite, chalk, limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite, iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite, barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassium ore pumice, etc.

copper grinder machine,stone grinder

Working Principle of copper grinder machine

The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of roller,which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small sizes ones and they are sent to storage bin by elevator. The electro magnetic vibrating feeder will send them to the middle of first dial evenly. The materials will be driven to the edge of dial by centrifugal force, and fall down into the ring and crushed, and then grinded by roller. This step is very important in whole copper grinder machineprocess.

The materials will fall down into the second and third ring, crushed and grinded. The high pressure-centrifugal blower will inhale air from the outside and blow the materials, which are grinded in the third ring, to powder classifier. The rotating turbo in the powder concentrator will make the coarse materials return to thecopper grinder machine and reground, while the fineness will mix with the air and go into the cyclone and be discharged the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.

copper grinder machineComposition and Structure:
The standard configuration ofcopper grinder machine consists of main unit, powder classifier, double cyclone collectors, pulsed filter, blower, motor, pipes and muffler. The optional accessories include jaw crusher, hammer crusher, elevator, feeder, and control cabinet.

copper grinder machine Features :
1. High capacity and low consumption
2. Easy fineness adjustment and high fineness
3. Reliable Security
4. Clean, environmental protection

copper grinder machine specifications:

Name		MTM100	MTM130	MTM160
Ring roll number(pcs)		4	5	6
Major diameter of roller(mm)		Φ310X170	Φ410X210	Φ440X270
Inner diameter of roller(mm)		Φ950X170	Φ1280X210	Φ1600X270
Revolving Speed(r\min)		130	103	82
Max feed size(mm)		<25	<30	<35
Final size(mm)		1.6-0.045 fineness can reach to 0.038	1.6-0.045 fineness can reach to 0.038	1.6-0.045 fineness can reach to 0.038
Output(t\h)		3-8	6-11	9-22
Complete physical size(mm)		7100×5900×7900	9200×7250×9700	12550×5700×8355
Main unit motor	Model	Y225S-4	Y280S-4	Y315M-4
	Power(kw)	37	75	132
	Rotate speed(r\min)	1480	1480	1480
Centrifugal induced draft fan motor	Model	Y225S-4	Y280S-4	Y315M-4
	Power(KW)	37	75	132
	Rotate speed(r\min)	1480	1480	1480
Classifier speed regulating motor	Model	YCT200-4A	YCT200-4B	YCT250-4A
	Power(kw)	5.5	7.5	18.5
	Rotate speed(r\min)	125-1250	125-1250	132-1320
Elevator	Elevator model	TH210	TH210	TH315
	Motor model	Y100L2-4	Y100L2-4	Y112M-4
	power(kw)	3	3	4
	Rotate speed(r\min)	1430	1430	1440
Jaw Crusher	Jaw Crusher model	PE200×350	PE250×400	PE250×750
	model	Y160M-6	Y180L-6	Y200L2-6
	Power(kw)	7.5	15	22
	Rotate speed(r\min)	970	970	970
Magnetic vibrating feeder	Model	GZ2F	GZ3F	GZ3F
	Power(kw)	0.15	0.2	0.2
