1, powerful lifting capacity, 2, small and light weight, 3, flexible and safe operation - details see: https://www.machineto.com/construction-weight-lifting-equipment-10097808

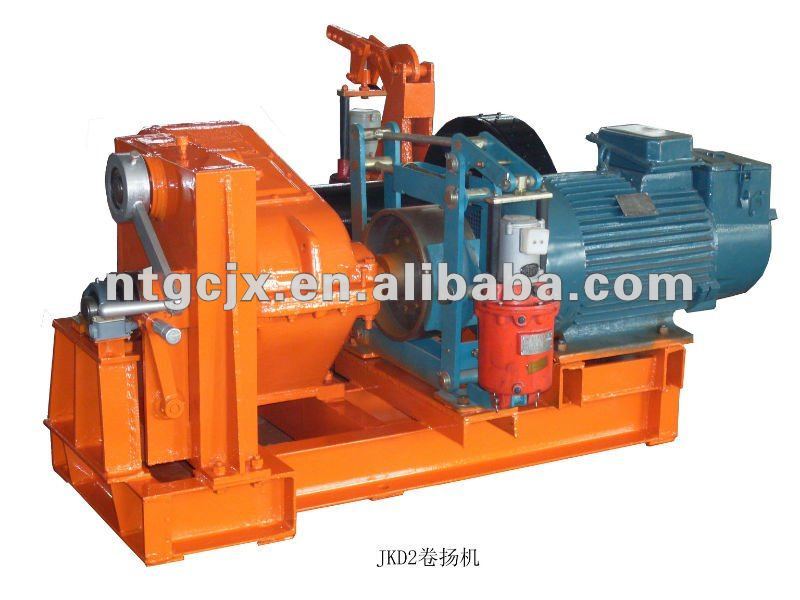

This machine is generally used for hoisting,moving,loading and unloading heavy loads, such as installing and moving large-sized concrete, steel structure and equipment.

Suitable for civil construction and Bridge Construction in construction site, plant, mine and so on.

Model	JKD1.5	JKD2	JKD3	JKD3	JKD5	JKD5	JK5
Wire rope rated pull KN	15	20	30	30	50	50	50
Wire rope rated speed m/min	30	48	30	30	22.2	30	20
Wire rope Diameter mm	10	12	17	17	21.5	22	17.5
Rope capacity m	1100	250	300	40	250	350	1100
Motor type	Y160M-4	YZR200L-6	YZR200L-6	Y225M-6	YZR180M-4	YZR250M1-8	Y180M-4
Motor power KW	11	22	22	30	18.5	30	18.5
Dimention mm	1189×1188×670	1978×1795×920	1580×1350×785	1492×1305×795	1670×1330×880	1988×1695×910	1772×1704×920
Total weight KG	1380	2000	1500	1500	1380	2500	2800

Model	JKD8	JKD8	JKD8	2JKD4
Wire rope rated pull KN	80	80	80	2X40
Wire rope rated speed m/min	30	30	0~26	23
Wire rope Diameter mm	28	26	26	14
Rope capacity m	600	200	110	30X2
Motor type	YZR280S-6	YZR280S-6	Y2TP280S-6	YZR225M-8
Motor power KW	55	55	45	22
Dimention mm	2522×1950×1240	2522×1950×1232	2620×2462×1302	2465×1626×880
Total weight KG	4200	5800	4500	2800

• Above technical parameter just for reference, We can design and manufacture different non-standard products according to customers' demands.
