concrete vibratory screed machine with honda engine

vibratory screed machine powered by electric motor, provides uniform vibration over the entire blade length - details see: https://www.machineto.com/concrete-vibratory-screed-machine-with-honda-engine-10119327
Condition:NewPlace of Origin:Zhejiang China (Mainland)Brand Name:enjoy-engineeringModel Number:SF4
Power Source:GasolinePower(W):6.6kw(9hp)Weight:92kgDimension(L*W*H):350x46x64cm
Certification:CEWarranty:1 yearAfter-sales Service Provided:Engineers available to service machinery overseasblade length:optional
concrete vibratory screed machine with honda engine
contact supplier for concrete vibratory screed machine with honda engine

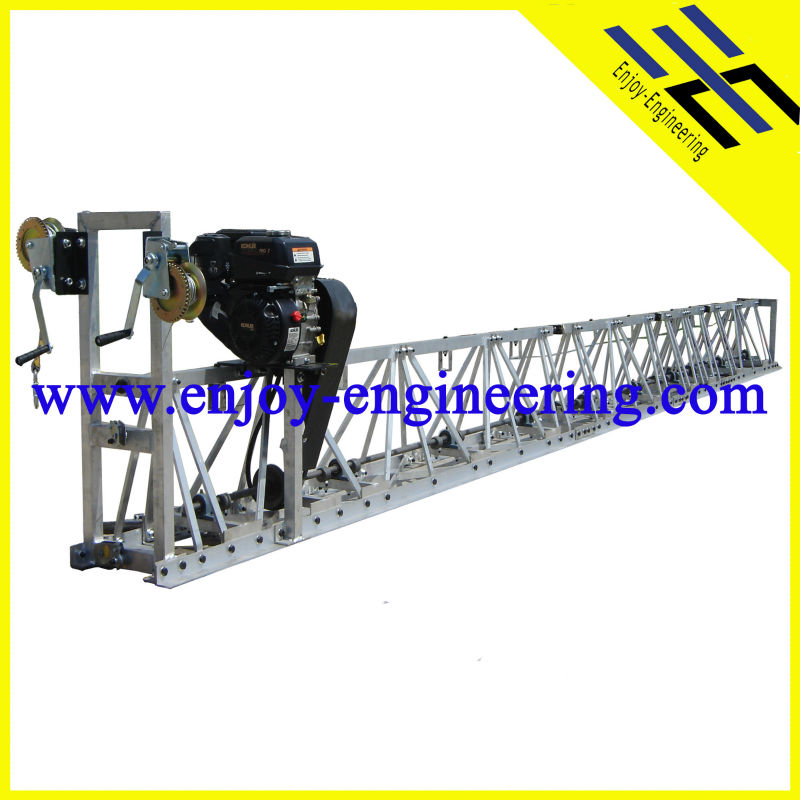

Vibrator truss screed features :
1) Specially design, hardened aluminum blade ensuring a smoother finish than conventional screeds.
2) Heavy rubber mounts to reduce the vibration level on the handle.
3) Adjustable handle in height, vertical & horizontal position (optional)
4) The rounded ends of the blade make it easy to go around obstacles
5) The tilt-up stand keeps the engine out of concrete or off the ground obstacles.
6) One piece casting body easy connect to engine.
7)Emergency stop switch available.
8) different working widths: 6-18M
9)Easily changed blades.

Truss Screed
ModelSF4-H
Power section
Length (m)3.1
Beam width(mm)355
Height(mm)475
Weight(kg)92
Engine typeHonda GX270
Max. output (kw)7
Max. speed(rpm)3600
Fuel Tank (L)2.9(4.0)
Max. speed (rpm3600
Fuel Tank liter (gal)6
Center section
Length(m)1.5
Beam width(mm)355
Height (mm)475
Weight (kg)26
End section
Length(m)1.5
Beam width mm355
Height(mm)475
Weight(kg)30
optional lenght6-18M(1M,1.5M,3M section)
Packing(cm)Power Section: 350*46*64 Center Section: 176*46*62 End Section: 177*46*64
concrete vibratory screed machine with honda engine
Packaging Detail:carton box
Delivery Detail:15days
