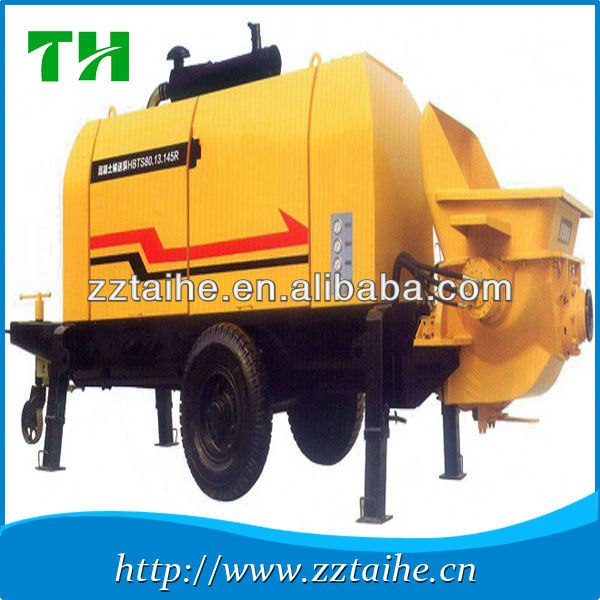

1.high efficiency, 2.low energy consumption, 3.durable, long working life, 4.easy operation, 4.safe and reliable performance - details see: https://www.machineto.com/concrete-pump-hbts40-12-55-10093018

Specifications

1.Professional team.
2.Perfect quality.
3.Perfect service idea.
4.Competitive price.

The advantage of our product :

1. High pressure tube and tube’s connector adopts foreign advanced products to make sure there is no booster or oil leakage in the hydraulic system.
2. One-way valve is installed in the two main oil cylinder’s piston stroke end, which can forbid bumping cylinder and also fill oil into the closed cavity of the oil cylinder.
3. Imported electric device substantially ensures the high reliability of electric controlling system.
4. Master cylinder adopts imported approach switch to extend its long service life.

Products characteristics of concrete pump:

The power system is consisted by technical diesel engine or electrical engine. It can drive the pumping system directely which samplized the linkage structure and improved the efficiency. Strong power system reduced the rate of occuring faults;

The main hydraulic pump and valve group of hydraulic system is adopted Gemany Rexroth open-style system with accurate and reliable exchanging;

The elements of electrical controlling system is adopted Japan and Gemany's original parts.The excellent assembly quality fully guaranteed the function of electrical controlling system.

The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.;

The Intelligentize & hommization design,easy to care and operate.

The specific configuration can be changed according to client’s situation.

Technical parameter of HBTS40-12-55

Whole performance of pump	items	unit	parameter
	Max. theo. Output	m3/h	49/26
	Concrete pressure	MPa	10/5
	Distributing valve style		S Valve
	Concrete cylinder size Diameter ×stroke	mm	200×1100
	Hopper size Capacity ×feeding height	L×mm	500×1435
	Outlet diameter	mm	Φ180
Power system	Engine model		Y250M-4
	Rated power	kW	55
	Hydraulic circuit type		Open circuit
	Pumping system pressure	MPa	32
Hydraulic system	Distributing pressure	MPa	19
	Mixing system pressure	MPa	14
	Max mixing speed	r/min	32
	Capacity of oil tank	L	300
	Max. grain diameter	mm	Pebble: 50 crushed stone: 40
	Diameter of delivery pipe	mm	Φ125/Φ180
Other parameters	Overall dimension Length×width×height	mm	5400×2020×2550
