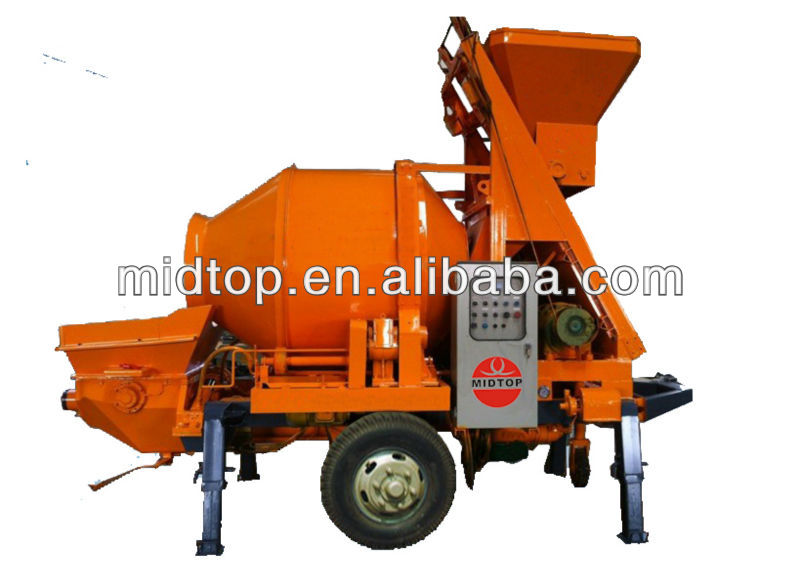

concrete mixer pump

concrete mixer pump - details see: https://www.machineto.com/concrete-mixer-pump-10092015

Condition:New	Place of Origin:Zhejiang China (Mainland)	Brand Name:Midtop	Model Number:CMP-30
Motor Power:55KW	Mixing Power:55KW	Charging Capacity:560L	Reclaiming capacity:350L
Speed of Mixing Drum:14	Water Supply Mode:WATER PUMP	Working Cycle Period:3minutes	Discharge Way:self
Outline Dimension:470019002100	After-sales Service Provided:Engineers available to service machinery overseas	Maximum theoretical concrete output:30MÂ³	Concrete delivery pressure:10Mpa
Dispatch valve form:S-type pipe	Hopper capacity:0.38MÂ³	Engine:55KW	Total weight:3500KG
Oversize dimension(LWH):470019002100	Allowed maximum aggregate size:30mm

Item	Unit	Specification
Maximum theoretical concrete output	M³	30
Concrete delivery pressure	Mpa	10
Maximum pumping frequency	times/min	23
Dispatch valve form		S-type pipe
Concrete cylinder specification:cylinder diameter * stroke	mm	Φ180*1000
Hopper capacity	M³	0.38
Motor power	kw	55
Rated voltage	V	380
Rated rotating speed	r/min	1480
Matched mixer type		JZC350
Hydraulic oil circuit form		Open loop
Allowed maximum aggregate size	mm	30
Inner diameter of concrete delivery pipe	mm	Φ100/80
Oversize dimension(LWH)	mm	470019002100
Total weight	ton	3.5
	Including 120m delivery pipe, soft pipe, tool bags
