level Screed powered by electric motor, provides uniform vibration over the entire blade length and enhances concrete compact - details see: https://www.machineto.com/concrete-concrete-screed-machines-for-sale-10119273

Vibrator truss screed features :
1) Specially design, hardened aluminum blade ensuring a smoother finish than conventional screeds.
2) Heavy rubber mounts to reduce the vibration level on the handle.
3) Adjustable handle in height, vertical & horizontal position (optional)
4) The rounded ends of the blade make it easy to go around obstacles
5) The tilt-up stand keeps the engine out of concrete or off the ground obstacles.
6) One piece casting body easy connect to engine.
7)Emergency stop switch available.
8) different working widths: 6-18M
9)Easily changed blades.

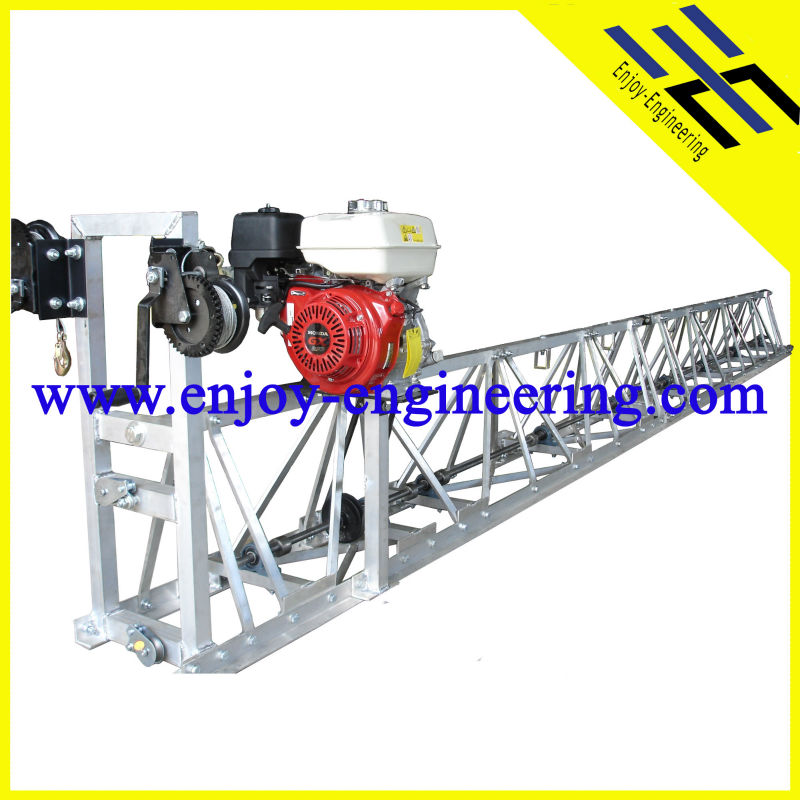

Truss Screed
Model	SF4-H
Power section
Length (m)	3.1
Beam width(mm)	355
Height(mm)	475
Weight(kg)	92
Engine type	Honda GX270
Max. output (kw)	7
Max. speed(rpm)	3600
Fuel Tank (L)	2.9(4.0)
Max. speed (rpm	3600
Fuel Tank liter (gal)	6
Center section
Length(m)	1.5
Beam width(mm)	355
Height (mm)	475
Weight (kg)	26
End section
Length(m)	1.5
Beam width mm	355
Height(mm)	475
Weight(kg)	30
optional lenght	6-18M(1M,1.5M,3M section)
Packing(cm)	Power Section: 350*46*64 Center Section: 176*46*62 End Section: 177*46*64
