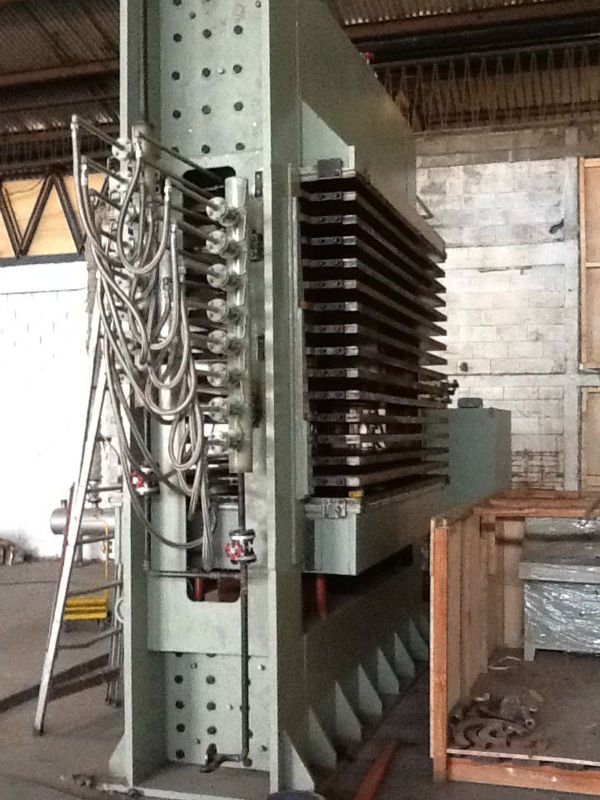

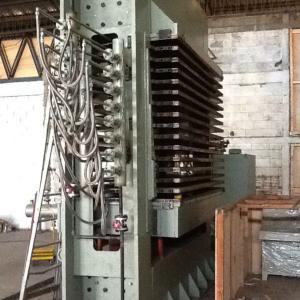

commercial plywood prodction press
1. strong design, 2. quality spare parts, 3. easy loading and assembling, 4. good after sale service - details see: https://www.machineto.com/commercial-plywood-prodction-press-10343931
| Type:Hot Press Machine | Place of Origin:Shandong China (Mainland) | Brand Name:Reliable | Model Number:500T |
| material:steel |
| No. | Specification | |
| 1 | Nominal Pressure | 500 Tons |
| 2 | Working oil Pressure | 18-20 mpa |
| 3 | Frame thickness | 40mm |
| 4 | Composite frame structure | |
| 5 | Top beam (mm) | 1000 |
| 6 | Bottom beam (mm) | 1000 |
| 7 | Middle beam | 450 |
| 8 | Hot Press plate (mm) | 2700*1300*42mm |
| 9 | Finish piece dimension | 4’ * 8’ |
| 10 | Opening | 15 |
| 11 | Floor number | 16 |
| 12 | Layers distance | 70mm |
| 13 | Heating method | Steam or heating oil |
| 14 | Board input | 8’ side |
| 15 | Hydraulic pump | 355 gear pump |
| 16 | Control method | Automatic control panel |
| 17 | Cylinder | 2*360mm Wuxi |
| 18 | Cylinder working distance | 1050mm |
| 19 | Close speed | 20-30 seconds |
| 20 | Total power (Kw) | 24 Kw |
| 21 | Weight | Approx. 37,000 Kgs |
| 22 | Overall dimensions (mm) | 3550*1370*4630 |
| Packaging Detail:standard packing |
| Delivery Detail:25 days |
