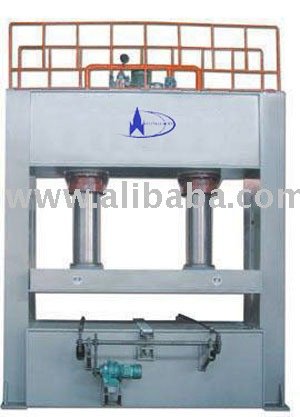

Cold Press

Cold Press - details see: https://www.machineto.com/cold-press-10346188

Place of Origin:Shandong China (Mainland)

Brand Name:Baishengyuan

Model Number:1set

Cold Press BY814x8/4
Model:	BY814×8/4
Nominal pressure(KN)	4000
Unit pressure of board surface (Mpa)	≤1.7
Width of press board (mm)	2700×1400
Max.working stroke(mm)	1000
Net opening(mm)	300-1300
Diameter and quantity of pressure cylinders	Φ 320/2
Diameter and quantity of lift cylinders	Φ 100/2
Feeding speed (m/min)	8
Motor power (kw)	112.2
Overall dimensions (mm)	3640×3800×5500
Weight(kg)	22000
