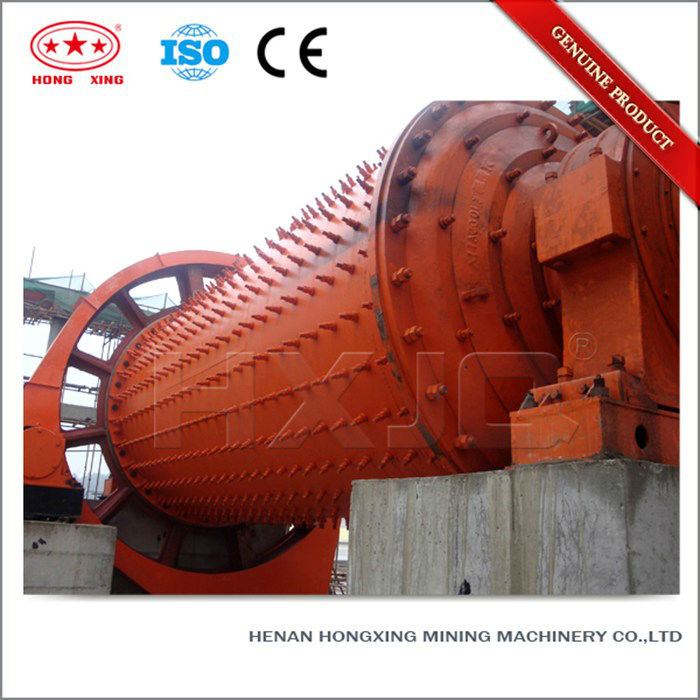

Coal powder mill, coal mill manufacturers, ball coal mill

New Tech of Coal powder mill, coal mill manufacturers, ball coal mill

Planing of steel plate and overall annealing of cylinder eliminate welding stress and prevent deformation. The flanges on both ends of the cylinder adopt large CNC lathes and special processing technology can fully guarantee concentricity requirements.

------------------------------------------------------------------------------------------------

Intriduction to Coal powder mill, coal mill manufacturers, ball coal mill

China ISO/CE Wind Swept Coal Mill adopts tailor-made rolling bearing as its barrel’s support structure, a new type designed according to a brand new concept. It has systemically resolved some problems like the lifespan and self aligning issue of replacing the sliding bearing with overloaded rolling bearing, seal problem under a bad condition as well as the cylinder running problem after a long-time work.

------------------------------------------------------------------------------------------------

Advantage of Coal powder mill, coal mill manufacturers, ball coal mill

Compared with the traditional ball mill for coal, the matched motor power of the mill can be reduced by 18% to 25% and economize 70% of the lubrication oil. The cooling water can be saved 90% and more than 20% of the comprehensive energy saving is able to be achieved.

Spec.(m) Item

Φ2.2×4.4

Φ2.4×4.75

Φ2.4×4.5+2

Φ2.5×3.9

Φ2.6×5.25+2.25

Φ2.8×5+3

Φ2.9×4.1

Φ3.0×6+3

Φ3.2×6.75+2

Φ3.4×6+3

Φ3.8×7+2.5

Φ3.8×7.25+3.5

Speed(r/min)

22.4

20.4

20.4

20

19.7

18.3

18.8

17.3

16.9

17.5

16.4

16.4

Capacity(t/h)

8~9

12~14

11~12

10

13~14

16~17

14~16

19~20

27~29

28~30

38~40

41~43

Fineness R80 (%)

10-12

8-10

8-10

8-10

8-10

8-10

8-10

8-10

8-10

12

12

12

Feeding Size(mm)

<25

<25

<25

<25

<25

<25

<25

<25

<25

<25

<25

<25

Grinding Media Loading(t)

20

22

22.5

22

28

32

35

43

50

55

80

85

Mositure(%)

Inlet

<10

<10

<10

<10

<10

<12

<10

<10

<10

<12

<12

<12

Outlet

<2

<2

<2

<2

<2

<2

<2

<2

<2

<2

<2

<2

Temp.(°C)

Inlet

<350

<350

<350

<350

<350

<350

<350

<350

<350

<350

<350

<350

Outlet

60~80

60~80

60~80

70~90

70~90

60~80

60~80

70~90

80~90

60~80

60~80

60~80

Main Reducer

ZD60

ZD60

ZD60

ZD60 MBY450

ZD70 MBY450

ZD70 MBY500

ZD80 MBY560

ZD80 MBY560

JDX630

JDX710

MBY710

MBY800

Main Motor(kw)

250

280

315

315

400

500

500

630

710

800

1250

1400

Weight(t)

46

54

76

62

98

107

78

124

148

162

178

220

Why Choose Us

1. We Are Factory ( NOT Dealer )

All machineries from Henan Hongxing Mining Machinery Manufactory are made by ourselves, with lower price, good quality and assured full after service.
So please buy machine from factory.

2. Training & Service

Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.

In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

-----------------------------------

3. If you are new for this business, we will help you

Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.

-----------------------------------

4. We’d like to recommend a suitable type for you and send you a best quotation.

-----------------------------------

5. Delivery

We have developed long and good relationship with many shipping agents. Ocean freight partners are:APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
