ISO9001:2008 China manufacturer Factory, 1. Good fineness, 2. High output, 3. Low energy consumption, 4. Low investment - details see: https://www.machineto.com/cnc-milling-machine-raymond-mill-minerals-powder-machine-rolling-mill-10314268

ISO9001:2008 qualified company Guilin Mining Machinery Co., LTD., founded in 1973,the original Guangxi Guilin Mining machinery Factory is Chinese largest production base of mining machinery and equipment R Pendulum Grinder for national production .We have a more than 500 working stuff, in which about 60 are Senior technician, and a more than 75000 sq.m standard working shop and office building. So that we can combine R&D, processing and manufacturing, marketing and sales, with after sales service into a whole. Till now, we have formed a whole production chain with 245 existing types of industrial equipment ,which include cast steel, cast iron , metal cutting , assembly 10 workshop separate parts factory, electronic factory.

Our products cover more than 24 models of the 5 major series: mill series, crushing series, classifier series, dedusting series, sand making series.

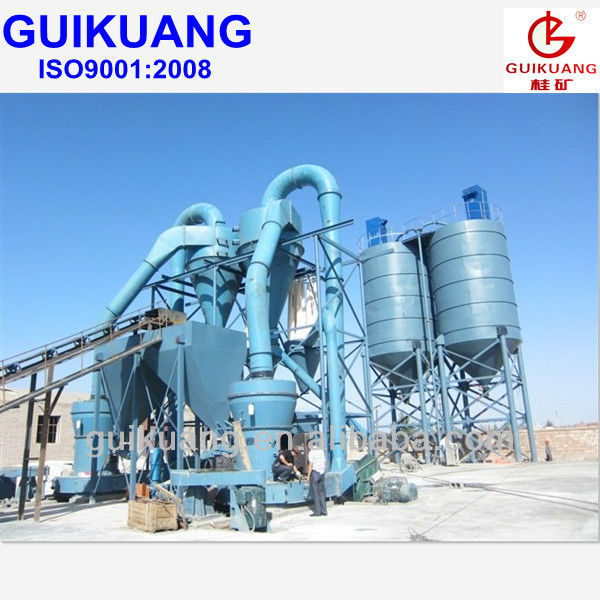

Gk1720 Super Large Mill

Features:

1. High Output & Low Consumption Compared with same capacity φ1250 vertical mill, one quarter power saving; Compared with normal Raymond mill, same with total outlet of 6 pcs 4R3216,one quarter power saving,

2. Less Floor Space Floor Space:153 sq.m. Compared with same output and granularity, one third floor space saving than 6 pcs 4R3216 Raymond mills( 1 pc takes 56 sq.m) So GK1720 will reduce investment in infrastructure.

3. Large Transmission Capacity Blower adopts high pressure centrifugal fan to increase air volume and air pressure, so as to greatly improve the ability of pneumatic conveying.

4. High Collection Efficiency Cyclone collector adopts parallel double cyclone collector, 10-15% higher than the single cyclone collection efficiency.

5. High Classification Accuracy Classifier adopts built-in large taper blade turbine classifier. The outlet fineness can be adjustable from 80-600 mesh.

6. Strong ability of shoveling material Adopting super large shovel blade to shovel as much as possible to the grinding area between the roll and ring.

7. Energy-conservation and Environment-protection Equipped with pulse dust collector in surplus wind outlet, collection efficiency is as high as 99.9% to keep workshop environmental health.

Main Technical Data:

Max Feeding Size(mm)	Product Fineness(mesh)	Capacity(kg/h)	Central Shaft Speed (r/min)	Inner Diameter of Ring (mm)	Grinding Roll Size (OD*Height)mm	Total Weight (t)	Total Power(kw)
30	80~600	5500~32000	90	φ1720	Φ510*300	48	375

Firstly, raw material is crushed by jaw crusher to the size required, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind. After this, the ground stuff is carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The airflow system is closely sealed up and circulated under condition of negative and positive pressure.

Note:This specification is just reference, any changes are subject to the products.

Cooperation With Egypt Customer

Attending Milling Machine Show:

China Machine Fair-Vietnam

Load And Transport

Shop Floor

Thank you for taking the time to go through our Raymond Mill. If there areany question, inquiry or comments, please feel free to contact us as below:
