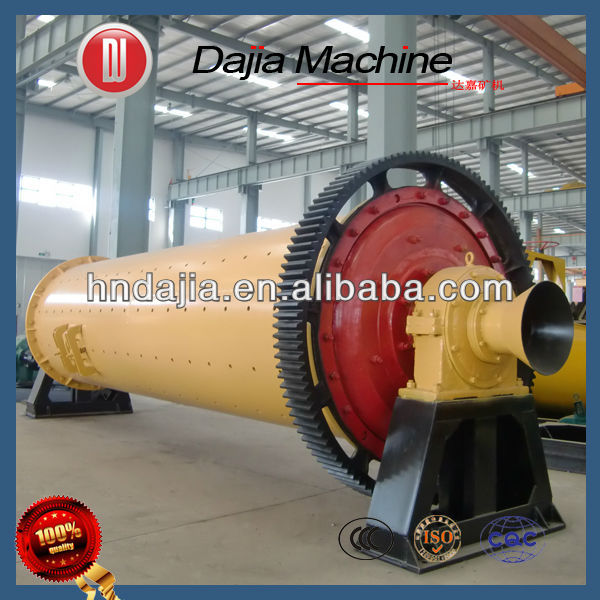

Clinker Grinder Ball Mill Machine for Cement Production

Clinker grinder ball mill machineis also called ball grinder mill, high energy ball mill, cement ball mill.

Grinding ball mill is the key equipment for grinding after the crushing process, and ball milling machine is widely used in manufacture industries like cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics. Ball grinding mill also can be used for the dry and wet grinding for all kinds of ores and other grind-able material. It works as wet grinding inconcentrate mill and dry grinding when processing micro powder.

Working Principle
Ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Specificationsof Cement Ball Grinder Mill

Model	Capacity(t/h)	Mill Type	Driving Form	Power(kw)	Reducer		Weight(T)
					model	ratio
2.2x7m	8-9	Open flow	Edge	380	ZD70	5	54
2.2x7.5m	10-11	Open flow	Edge	380	ZD70	5	63
2.2*8m	10-12	Open flow	Edge	380	ZD70	5	65
2.2*9.5m	14-16	Open flow	Edge	475	ZD70	5	70
2.4*10m	19-19	Open flow	Edge	630	JR75	5.64	94.5
2.4*11m	19-21	Open flow	Edge	630	RZD80	6.3	99.2
2.4*13m	21-23	Open flow	Edge	800	MBY710	7.1	115.2
2.6*13m	28-32	Open flow	Edge	1000	MBY800	7.1	148
2.6*13m	28-32	Open flow	Central	1000	MBY100	19.5	101.73
3*12m	32-35	Open flow	Edge	1250	MBY900	7.1	168.6
3*13m	34-37	Open flow	Edge	1400	MBY900	7.1	172.26
3.2*13m	45-50	Open flow	Edge	1600	MBY1000	7.1	196.26
3.8*13m	60-62	Open flow	Central	2500	MFY250	16.5	204
4.2*13m	85-87	Open flow	Central	3530	JQS3550	15.6	254

Construction Site of Stone Ball Mill

Foreign Customers Visits

Factory of Dajia Mining Machines

Dajia Mining Machinery can manufacture machines for stone & sand production line, cement production line and ore separation line, such as crushing machine, ball mill, rotary dryer, rotary kiln and ore separator, with top quality and rich experiences.

Dajia, you reliable supplier!
