high-efficiency ball grinding mill:, 1.have 36 years manufacture experience, 2.exported to over 30 countries, 3.energy saving - details see: https://www.machineto.com/china-top-10-high-efficiency-ball-grinding-mill-10314271

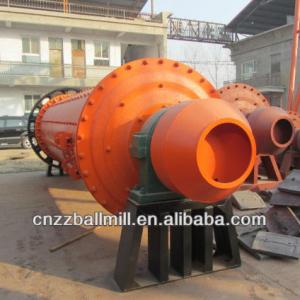

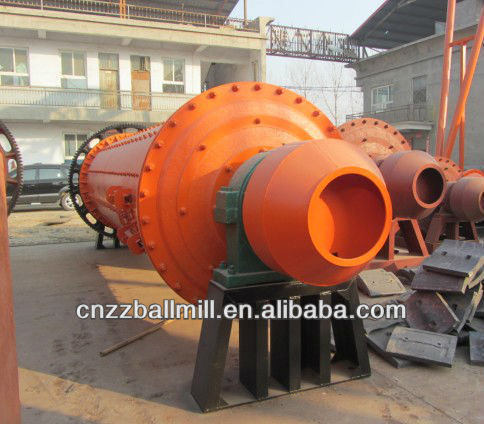

Description of high-efficiency ball grinding mill

This is a key equipment to grind the crushed materials, and it is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,.And the cement mill can grind various ores and other materials with dry type and wet type.

features of high-efficiency ball grinding mill

This high-efficiency ball mill changes in the structure of the traditional mill,so that the body,chassis integration can be

installed on the basis of a plane,the main bearing a double row-aligning roller bearings,can reduce energy consumption 30%.liaoduo small increase,the crease in handing capacity of 15-20%.

Besides,It have the stable structure,high capacity,easy maintenance,reliable performance,etc.And thecast steel

gear rims,main bearings(made in wafangdian)can be repaired for free in two years under right using(except fakeones)

Main technical parameters of high-efficiency ball grinding mill :

Specification	Rotary Speed (r/min)	Ball media Loading(t)	Feeding Granularity (mm)	Discharging size (mm)	Output (t/h)	Power(KW)	Weight(T)
Φ900×1800	38	1.5	≤20	0.075-0.89	0.652	18.5	3.6
Φ900×3000	38	2.51	≤20	0.075-0.89	1.13.5	22	4.6
Φ1200×2400	32	3.8	≤25	0.075-0.6	1.54.8	30-45	12.5
Φ1200×3000	32	5	≤25	0.074-0.4	1.65	30-45	12.8
Φ1200×4500	32	7	≤25	0.074-0.4	1.65.5	55	13.8
Φ1500×3000	27	8	≤25	0.074-0.4	25.8	75-90	17
Φ1500×4500	27	14	≤25	0.074-0.4	36.5	90-110	21
Φ1500×5700	27	15	≤25	0.074-0.4	3.58	110-132	24.7
Φ1830×3000	24	11	≤25	0.074-0.4	410	132-180	28
Φ1830×6400	24	23	≤25	0.074-0.4	6.515	210	34
Φ1830×7000	24	25	≤25	0.074-0.4	7.517	210-245	36
Φ2200×5500	21	30	≤25	0.074-0.4	1022	370	48
Φ2200×6500	21	31	≤25	0.074-0.4	1426	380	50
Φ2200×7500	21	33	≤25	0.074-0.4	1529	475	56
Φ2400×7000	21	39	≤25	0.074-0.4	1633	475	69
Φ2400×11000	21	51.5	≤25	0.074-0.4	1635	630	99
Φ2700×3600	21	39	≤25	0.074-0.4	1629	475	74
Φ2700×4500	21	43.5	≤25	0.074-0.4	2035	500	80
Φ3200×4500	18	65	≤25	0.074-0.4	25-40	800	137

welcome to our factory,we will do our bas to meet your requirement

The high-efficiency ball grinding mill hade exported to 30 countries

we are delivery our high-efficiency ball grinding mill

Please contact me if you have any question about high-efficiency ball grinding mill

Our service is very thoughtful
