China Mining machinery Manufacturer factory price ore grinding equipment/ ball mill for sale

Application of the ore grinding machine

As we all know that the ore grinding mill is a key ore grinding equipment in the mining industry, it can be widely used to grind various kinds of minerals, many industries need to use the grinding mill, such as benefication industry, chemical industry, glass industry, and so on. a complete grinding mill mainly consists of grinding body, liners, grinding ball, motor, etc.

1.High quanlity raw material for ore grinding equipment

Our raw material and accessories are all purcahsed from professional manufacturer which has sevaral years-manufacturing experience,quanlity is guaranteed and prestige is excellent.

Our ore grinding equipment features

1) the grinding mill is high efficiency and power saving

2) There are two ways of grinding: dry way and wet way.It can be divided into tabular type and flowing type.

3) When use, the material to be ground is loaded into the neoprene barrel that contains grinding media.
4) The longer the carbon black millruns, the finer the powder will be.Ultimate particle size depends entirely on how hard the material is, and the time how long the ball mill runs.

5) Direct drive via bearing journal with top-mounted gearbox.Product discharge via slots located around the periphery of the drum.

Technical Parameters of ore grinding equipent

Model	Inside path (mm)	Length (mm)	Speed (r/min)	Motor			capacity (t)	Size (mm)	capacity	Weight (kg)
				Model	Power(kw)	Speed(r/min)
900 ×1800	900	1800	37	Y180L -6	15	970	1.8	≤15	0.5-2	3400
900 ×2100	900 /700	1800 /300	37	Y180 -6	18.5	970	1.73	≤15	0.4-2	3900
1200 ×2000	1200	2000	3	Y20L2 -6	30	970	2.81	≤25	1.1-2.5	7780
1200 ×2400	1200 /900	2000 /400	35	Y225M -6	30	980	3.52	≤25	1.3-3.2	8650
1200 ×2800	1200 /900	2400 /400	35	Y250M -6	37	980	4.22	≤25	1.5-3.7	10020
1200 ×4500	1200 /900	4100 /400	35	Y280S -6	45	980	5.2	≤25	2.7-6.79	14000
1500 ×3000	1500	3000	29	Y315S -6	75	990	6.8	≤25	3.3-8.2	14122
1500 ×3500	1500 /1200	3000 /500	29	Y315S -6	75	990	8.55	≤25	3.3-8.5	15636
1500 ×4500	1500 /1200	4000 /500	29	Y315M -6	90	990	13	≤25	4.5-12	20000
1500 ×5700	1500	5700	29	Y315L1 -6	110	990	15	≤25	2.6-14	25000
1830 ×3000	1830	3000	24	Y315L1 -8	135	735	13	≤25	4-15	28000
1830 ×4500	1830	4500	24	Y355M1 -8	155	740	15	≤25	4-19	32000
2100 ×3000	2100	3000	22	Y355L1 -8	210	740	19.3	≤25	6.4-28	40790
2100 ×3600	2100 /1800	3000 /600	22	Y355L1 -8	210	740	22.9	≤25	7.6-28	43454

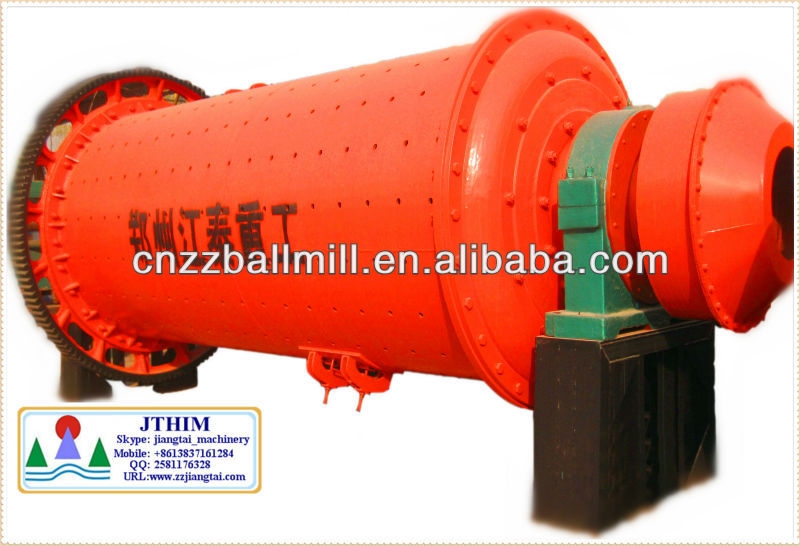

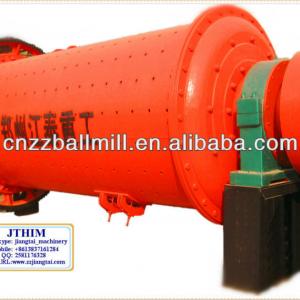

Some photos about ore grinding equipment
