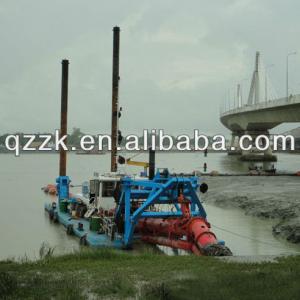

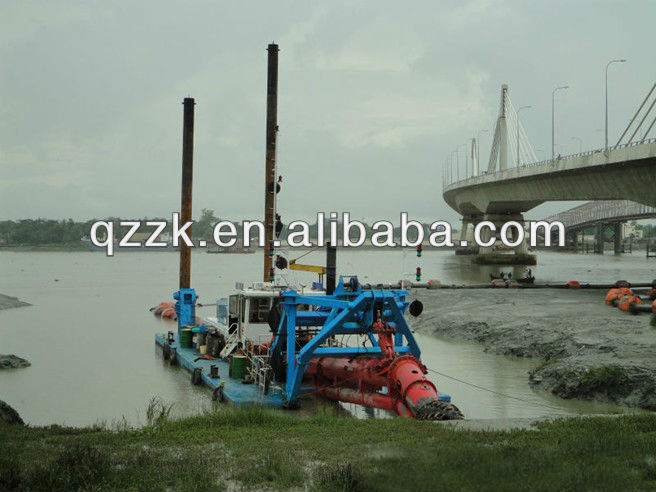

China cutter sand dredger, river, lake,reservior dredging, hydraulic system, service well - details see: https://www.machineto.com/china-cutter-type-river-sand-dredger-10311504

Basic Descriptions of ZKCSD Series Cutter Suction Dredger

A cutter suction dredger is a stationary that uses a rotating cutter head to loosen the material in the bed (‘cutting’).

A suction inlet located beneath the cutter head (known as the suction mouth) is connected by a suction tube directly to one or more centrifugal pumps. The vacuum force at the suction inlet sucks up the loosened material. The suction tube and cutter head are attached to a ladder. The ladder with cutter head is positioned at the fore of the vessel.

On the aft side, the cutter generally has two spud poles. One spud pole (the auxiliary spud) passes straight through the vessel, while the other is mounted on a movable spud carriage, which can be moved lengthwise along the vessel or pontoon. Steel cables are used to move the ladder or cutter head back and forth, with the spud in the spud carriage as the centre of each concentric circle that it describes. Moving the spud carriage causes the cutter suction dredger to move as well (‘stepping’). The cutter suction dredger discharges the dredged material directly to shore via a floating pipeline or into a barge with a special loading system.

Types	ZKWN 10/8	ZKWN 12/10	ZKWN 14/12	ZKWN 16/14	ZKWN 20/18	ZKWN 22/20
Output(m3/h)	200	250	300	350	450	500
Dredging depth(m)	9	10	14	14	15	15
Full Length(m)	21	25	35	37	40	44
Hull Length(m)	14	18	25	26	30	35
Hull Height(m)	1.6	1.6	1.8	1.8	2.2	2.2
Hull Width(m)	4.6	5.2	6.0	6.0	7.5	8.0
Main Engine(KW)	300	450	720	1000	1200	1200
Auxiliary Engine(KW)	24	24	24	30	380	380
Cutter Diameter (m)	1.0	1.3	1.5	1.5	1.65	1.8
Suction/Discharge pipe(mm)	250/200	300/250	350/300	400/350	550/450	600/500
Rate of Water Flow(m3/h)	800	1200	2000	2800	3500	3500
Operation system	PLC System, Mechanical Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system	PLC System Hydraulic Operation system

The parameters are just for reference. Customized specification is available.

Our company, Qingzhou Zhongkai Dredging & Mining Machinery Co.,Ltdhopes to work with customer in local or abroad and agents have cooperation in the future.
